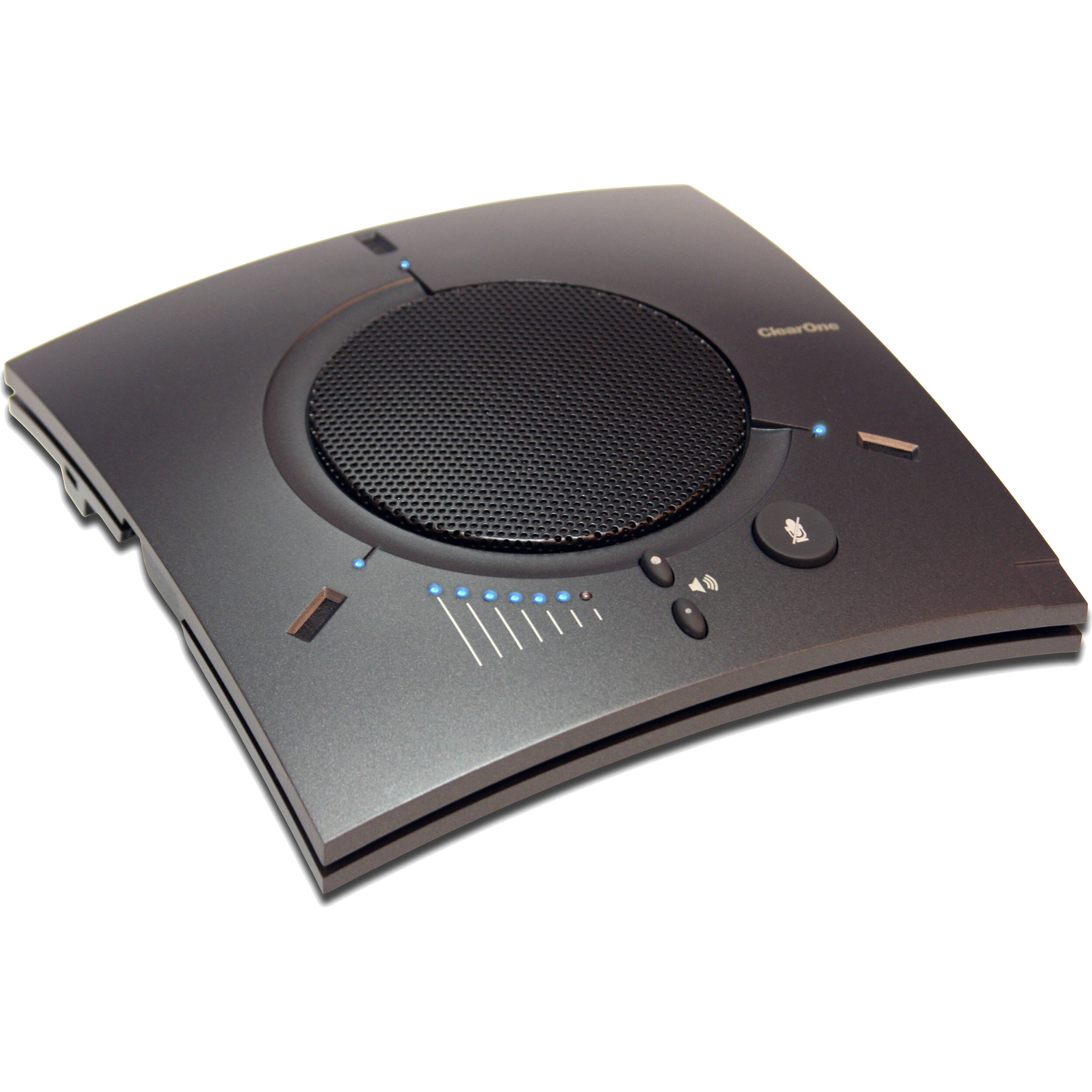

CHAT® 170 & CHATAttach® 170

CHAT® 170 & CHATAttach® 170

Group USB speakerphone, powered by ClearOne’s market leading HDConference™ audio and fully compatible with Skype® for Business, enhances any web conferencing, unified communications and video conferencing experience in your personal workspace, huddle rooms, and small and medium-size conference rooms with crystal-clear audio for business class performance.

Description
  • First-mic priority intelligently activates only the microphone closest to the person speaking, preventing the amplification of ambient noise and room reflections. Adaptive modeling continuously samples room acoustics for any changes
  • Distributed Echo Cancellation® & noise cancellation along with full-duplex performance & automatic level controls guarantee your conference calls to be natural with unmatched audio clarity free of any distractions
  • Fully-compatible with Skype® for Business and also compatible with popular conferencing applications like WebEx®, GoToMeeting, Collaborate Space, Spontania, Google Hangouts, Skype & more
  • Three built-in microphones array with 360-degree audio pick up up to 10 feet. Large loudspeakers for rich, clear conferencing and audio playback
Specification
System Requirements

Microsoft Windows 8, 10
Mac OS
Connections:

USB:Version 2.0 Compatible
Type:Mini-B Female
Keyed Connector: Keyed RJ-45 (8-conductor)
Controls:

Volume Up
Volume Down
Microphone Mute
Audio:

Speaker:
• Bandwidth: 190 Hz – 20 kHz
• Max Output Level: 85 dB SPL @ 1 foot (0.30 meter)
Microphone:
• Bandwidth: 50 Hz – 7.75 kHz
Environmental:

Operating Temperature:
• 41 – 104° F (5 – 40° C)
storage Temperature:
• 32 – 158° F (0 – 70° C)
Processing:

Full Duplex
Distributed Echo Cancellation (D.E.C.)®
Noise Cancellation (NC)
Automatic Level Control (ALC)
Line Echo Cancellation (LEC) – Selectable
First-Mic Priority
Power:

USB: 5 VDC @ 500 mA Maximum
External:
• Input: 100 – 240 VAC
• Output: 9 VDC @ 560 mA
• Tip: Power • Ring: Ground
Mechanical:

Dimensions (W x D x H):
• 7.4” x 7.4” x 1.8” (18.8 cm x 18.8 cm x 4.6 cm)
Weight:
• 1.17 Ibs (0.53 kg)
Compliance:

RoHS
REACH
FCC Class A Part 15
CES-003
CE Listed
UL Listed
Model numbers:

910-156-256 CHAT 170:
• Single CHAT 170 and Connecting Cable
910-156-256-00 CHATAttach 170:
• Two (2) CHAT 170 Devices, Conecting Cables and Power Supply
Accessory Part numbers:

910-156-225 CHATAttach expansion Kit:
• Includes Cables, Power Supply and Quick-Start Guide to Update Two (2) CHAT 170 Devices to CHATAttach
