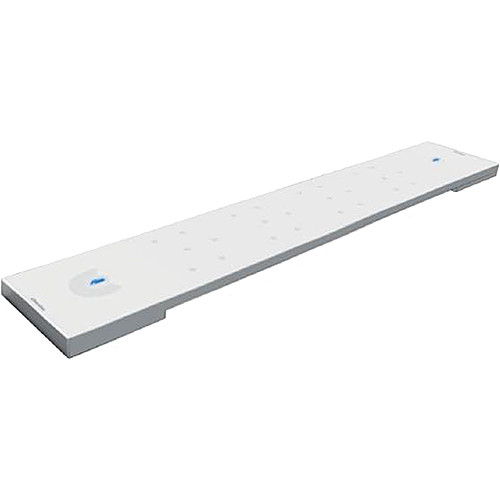

Beamforming Microphone Array 2

Beamforming Microphone Array 2

Ultra-sleek design to deliver the clearest audio pickup available with beamforming, acoustic echo cancellation and smart switching.

Description
  • Most advanced AEC and Noise Cancellation
  • Acoustic Intelligence with adaptive ambient
  • Single cable for power, audio, and control
  • Two power options- P-Link and POE
  • Can daisy-chain with Dialog 20 Wireless Microphone System
  • Can daisy-chain with all ClearOne P-link devices such USB expander and GPIO expander
  • White or Black color options
  • Works with ClearOne CONVERGE Pro 2 DSP AEC mixers
Specification
Audio

24 microphones
1 Channel In (does not use any input channels in CONVERGE Pro 2)
Number of Beams:
– 5 in Ceiling mode
– 6 in Table mode
– 6 in Table mode
Polar Pattern: Custom
Frequency Response: 150Hz – 16kHz, +/- 3dB
Dynamic Range: 150Hz – 16kHz, >70dB
LED & Touch Sensor

Sensor Type: 2 Capacitive Touch Button for Mute
LED (2x: one on each end of a unit):
– Power On
– Power On & Unmuted: Blue
Muted: Red
Power Off: No light
Configuration

Beam enable/disable
Mounting mode selection:
– Auto
– Ceiling
– Wall
– Table
Acoustic Echo Cancellation (AEC) on/off
Noise Cancellation (NC) on/off
Filters:
– All Pass
– Low Pass
– High Pass
– Notch
– PEQ
Automatic Level Control (ALC) on/off
Gain adjust
Mute on/off
Auto gate/Manual gate
USB

For future use
P-Link Peripheral Bus

P-Link In & Out: Proprietary Peripheral Bus
Ports Type: RJ-45
Cable: Solid core 24AWG, factory terminated Cat 5e or Cat 6
Distance: Up to 200 feet
Sub-standard: Mode B
Daisy-Chain:
– Up to 3 Beamforming Microphone Array 2 units with each supported CONVERGE Pro 2 unit in the same chain
– Up to 3 Beamforming Microphone Array 2 units and up to 3 DIALOG 20 Wireless Receiver units with each supported CONVERGE Pro 2 unit in the same chain
– Up to 6 Beamforming Microphone Array 2 units in the same chain with 2 supported CONVERGE Pro 2 units connected through C-Link (future software/ firmware upgrade)
Long Distance P-Link:
– Increases P-Link distance from 200 Ft to 650 Ft 650 Ft (200M) maximum cable distance between any two units
– Cat6, 550 MHz, 23 AWG, solid conductor cable Do not use Copper Clad Aluminum (CCA) cable Available only for BFM2 peripheral units
– 48V PoE Midspan Mode B power injector for 1 BFM2 unit
– 56V PoE Midspan Mode B power injector for 3 BFM2 units
Power Selection Switch

Sensor Type: Slide Switch
Toggle toward P-Link to power device by P-Link
Toggle toward PoE to power device by PoE Injector
Configuration & Administration Software

CONVERGE® Pro 2 CONSOLE® Software
Commands

Through supported CONVERGE Pro 2 unit connected through P-Link
Power & Thermal

Power Type: PoE
Port Type: RJ-45
Power Source: P-Link or PoE Injector
PoE In: PoE IEEE 802.3at
Power Source Indicator: Set the position of the power source to indicate the source of the power (P-Link or PoE)
Mains Voltage: 100-240VAC, 50/60Hz AC Power Consumption: 12W Typical DC Power Consumption: 5.26W Typical
Thermal: 40.95 BTU/Hr
Operating Temperature: 14° F/-10° C to 104° F/40° C ambient temperature
Dimension & Weight (WxHxD)

30” x 1” x 5.75” (762mm x 25.4mm x 146mm)
Unit Weight: 4.4 lbs (2.0kg)
Shipping Weight: 5.7 lbs (2.59kg)
Part Numbers

910-3200-201: White Beamforming Microphone Array 2
910-3200-201-B: Black Beamforming Microphone Array 2
