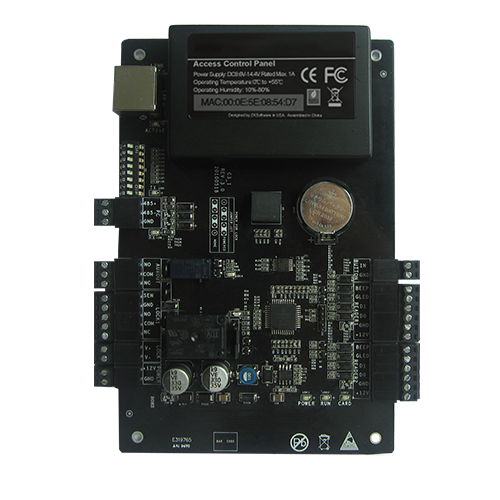

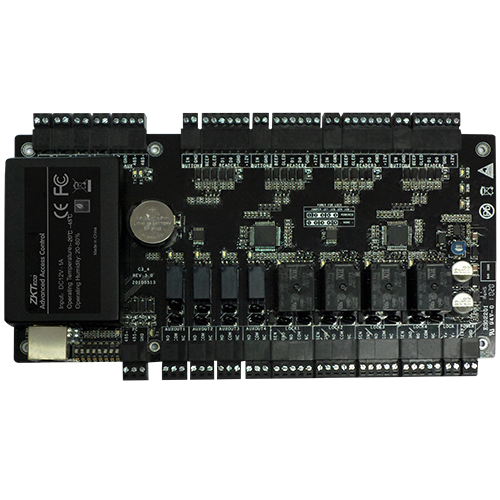

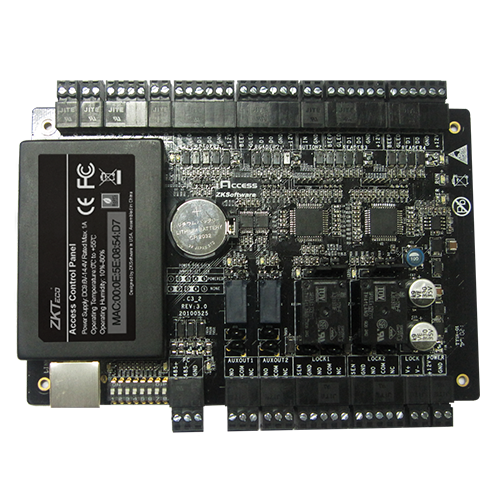

C3-100/200/400

C3-100/200/400 - Image 2

C3-100/200/400 - Image 3

C3-100/200/400 - Image 4

C3-100/200/400

IP-based Door Access Control Panel

Description

IP-based Door Access Control Panel

Specification

Number of Doors Controlled	C3-100: 1 Door C3-200: 2 Door C3-400: 4 Door
Number of Readers Supported	C3-100: 2 C3-200: 4 C3-400: 4
Types of Readers Supported	26-bit Wiegand, others upon request
Number of Inputs	C3-100: 2 (Exit Device and Door Status) C3-200: 6 (2 Exit Device, 2 Door Status, 2 AUX) C3-400: 12 (4 Exit Device, 4 Door Status, 4 AUX)
Number of Outputs	C3-100: 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) C3-200: 4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output) C3-400: 8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output)
Card Holders Capacity	30,000
Log Events Capacity	100,000
Weight	C3-100: 3.35kg C3-200: 3.4kg C3-400: 3.55kg
Communication	TCP/IP and RS-485*
Enclosure	Powder Coated Aluminium
Mounting	Wall Mount
Power Supply	12V DC, 1.5A
Dimensions (Bundle Only)	380mm(L)×80mm(W)×280mm(H)
Dimensions (Board Only)	160mm×106mm
