COLLABORATE® Versa® Lite CT

COLLABORATE® Versa® Lite CT

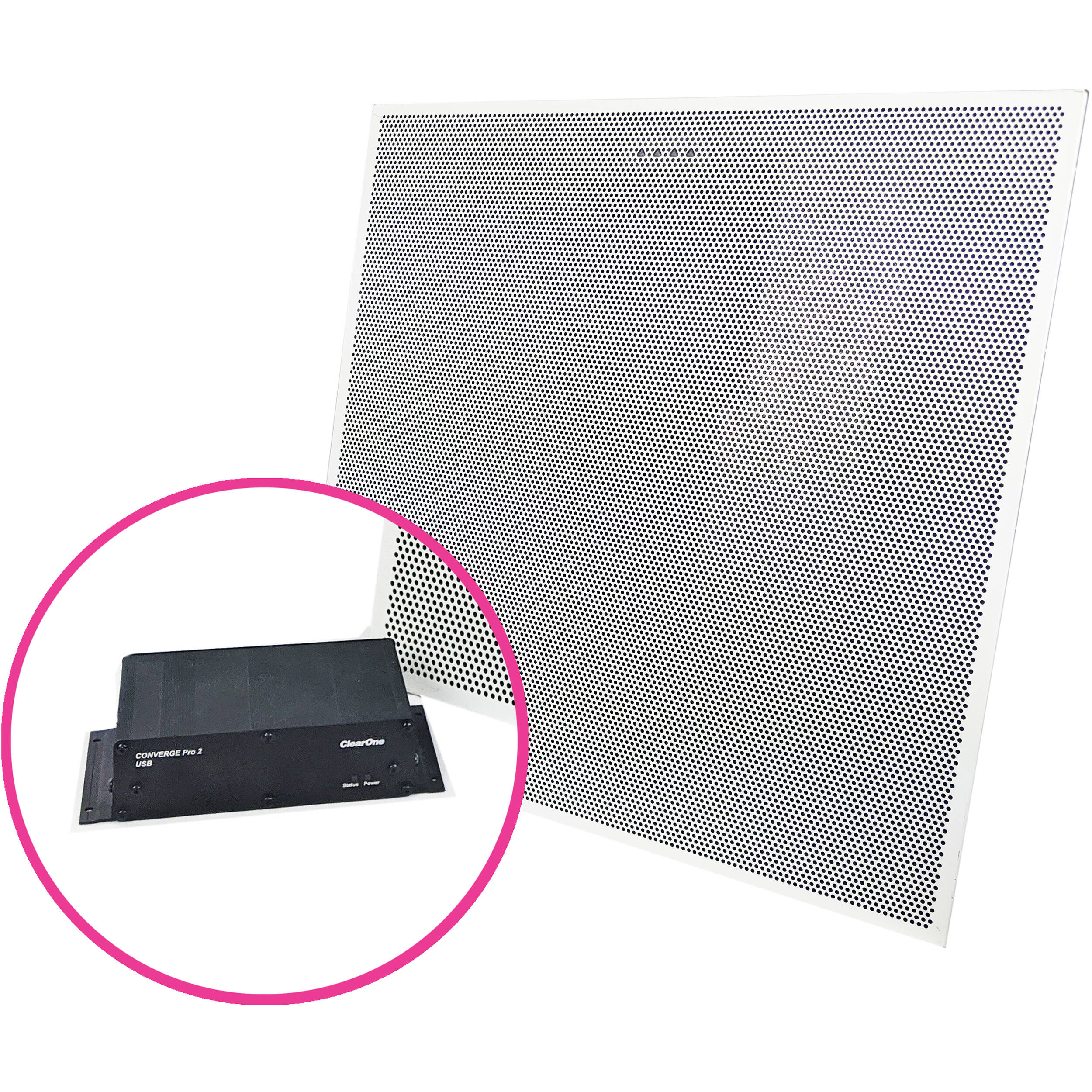

The COLLABORATE® Versa Lite CT conferencing system features a USB audio-enabled Beamforming Ceiling Tile Microphone Array that brings cost-effective and superb professional conferencing audio to small-and mid-sized meeting rooms.

Description
  • Add ClearOne’s Wall-Mount Bluetooth Expander to enable mobile devices to join the conference wirelessly.
  • BMA CT with built-in AEC and adaptive steering (think of it as smart switching) provides the same impeccable room coverage.
  • Complete your system with any UNITE® conferencing camera.
  • Includes 2×10 Watt power amps.
  • Add a Versa Hub for single-cable connection for cloud-based collaboration.
  • Easily and quickly configure the system using CONSOLE® AI Lite software with Audio Intelligence and Auto Connect™.
  • ClearOne’s BMA technology is protected by at least a dozen patents and pending patent applications.
  • Connect laptop or room PC to the BMA CT directly through the USB port on the Versa USB. The included 50-foot CAT6 cable connects the Versa USB to the BMA CT.
  • Delivering superb coverage and quality at an unbeatable price, the Versa Lite CT is easy to install and easy to use.
Specification
24 MICROPHONES

Number of Beams: Two patterns, either 5 or 6 beams
Polar Pattern: Custom
Frequency Response: 150Hz – 16kHz, +/- 3dB
Dynamic Range: 150Hz – 16kHz, > 70dB
AMPLIFIER OUTPUT

Type: 5.08mm Black Header, Male, Phoenix type Euroblock
Audio: 2 channels
Output Power: 2x10W Max, 8Ω load*
Frequency Response: 20Hz – 22kHz @ +10dBu, +/ 0.5dB
CONFIGURATION

Acoustic Echo Cancellation (AEC) on/off
Noise Cancellation (NC) on/off
Automatic Level Control (ALC) on/off
Gain adjust
Mute on/off
CONFIGURATION & ADMINISTRATION SOFTWARE

CONSOLE® AI Lite Software
DIMENSIONS

24” BMA CT
23.72 x 23.72 x 2.13” (602.5 x 602.5 x 54.1mm)
600 mm BMA CT:
23.33 x 23.33 x 2.13” (592.5 x 592.5 x 54.1mm)
WEIGHT

BMA CT – 7.7lbs (3.5kg)
COLLABORATE VERSA USB

Port Type: USB-B Connector
Audio: Digital audio, 2 x 2 bidirectional channels
Sample Rate: 48 kHz
Sample Bit Depth: 24 Bit
Compatible: USB 2.0, USB 3.0
USB Cable Distance: 16 feet (5 meters)
Compatible: Windows & Mac OS devices
P-LINK PERIPHERAL BUS

Ports Type: RJ-45 (Cat5e or Cat6)
P-Link In & Out: Proprietary Peripheral Bus
PoE In:
P-Link In Port
PoE 802.3af Mode B, Midspan
Power on “spare pairs” 4,5 and 7,8
Cable: Solid core 24AWG, factory terminated Cat 5e or Cat 6 cable
Distance: Up to 200 feet (60 meters)
POWER SELECTION SWITCH

Sensor Type: Slide Switch
Toggle toward P-Link to power device by P-Link
Toggle toward PoE to power device by PoE Injector
PoE In PORT

Port Type: RJ-45 port
PoE: 802.3af or 802.3at PoE/PoE+ injector input
MOUNTING

Rack-shelf mount
Under the table mount
Wall mount
Ceiling mount
Width x Depth x Height:

Without rack-ears:
5.5” x 1.6” x 4.1” ( 139.7 x 106.68 x 104.14mm)
With rack-ears:
6.8” x 1.7” x 4.1” (172.72 x 4.3.18 x 104.14mm)
Unit Weight: 0.88 lbs (0.4 kg)
SYSTEM POWER & THERMAL

Power Type: PoE/PoE+
Port Type: RJ-45
PoE In/P-Link In: 802.3af or 802.3at PoE/PoE+
Power Source: PoE Injector or equivalent
PoE: IEEE 802.3at compliant devices providing 56V and 640 mA (36 W).
P-Link In – Mode B
Power Consumption:
– 100-240VAC, 50/60Hz, 3 Watts Typical
– 38W at max power 1kHz (2 x 10W)
– Thermal: 130 BTU/Hr at max power
– Operating Temperature: 14° F/-10° C to 104° F/40° C ambient temperature
PART NUMBERS

930-3200-010-U – COLLABORATE Versa Lite CT
INCLUDES

910-3200-205-U BMA CT 24in
910-3200-305 COLLABORATE Versa USB
910-3200-202 PoE power supply kit
910-3200-204-50 RJ45 CAT6 Cable – 50’

930-3200-010-I – COLLABORATE Versa Lite CT INTL

910-3200-205-I BMA CT 600mm
910-3200-305 COLLABORATE Versa USB
910-3200-202 PoE power supply kit
910-3200-204-50 RJ45 CAT6 Cable – 50’
BMA CT MOUNTS FOR NON-TILE CEILINGS

910-3200-210 BMA Surface-Mount Kits 24in
910-3200-210-I BMA Surface-Mount Kits 600mm
910-3200-212 BMA Recessed-Mount Kits 24in
910-3200-212-I BMA Recessed-Mount Kits 600mm
OPTIONAL CLEARONE PERIPHERALS

UNITE® 50 4k ePTZ Camera
UNITE® 150 PTZ Camera
CONVERGE® Wall-Mount Bluetooth Expander
COLLABORATE® Versa Hub
Ceiling Loudspeakers
