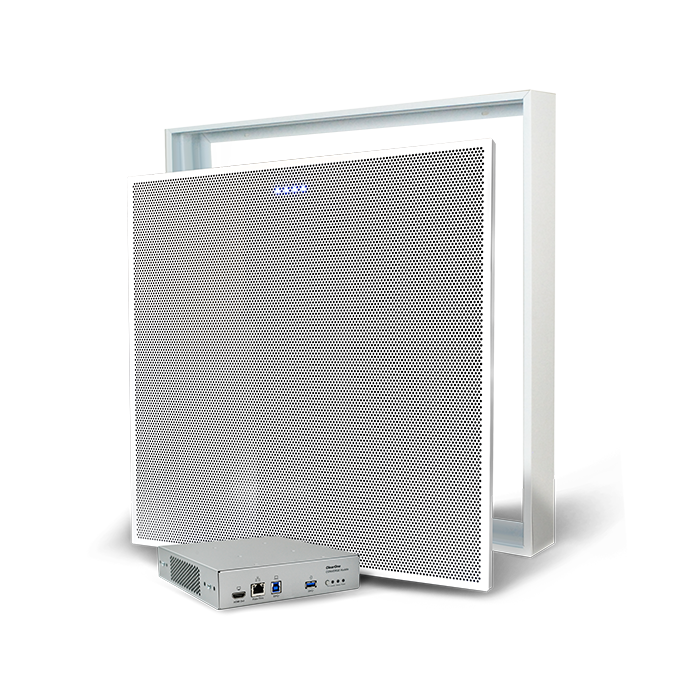

COLLABORATE® Versa® Pro CT

COLLABORATE® Versa® Pro CT

An unbeatable product offering that includes a Huddle audio DSP and the Huddle-compatible and patented BMA CT that is a perfect fit for small-to medium-sized rooms.

Description
  • Configure using CONSOLE® AI software’s enhanced visualization and audio intelligence.
  • BMA CT with built-in AEC, provides the same impeccable room coverage as the BMA CT using adaptive steering (think of it as smart switching).
  • Now, configure Versa Pro CT directly through the USB port, or use network Ethernet jack.
  • Includes mic/line inputs with AEC, line outputs, 4×10 Watt power amps, USB audio, mobile phone jack, and HDMI.
  • Monitor, control, and audit Versa Pro CT with CONVERGENCE™ unified AV network management software.
  • Comes preloaded with a project file ready for the most common room configuration.
  • With a rich mix of video and audio options, the Versa Pro CT is versatile, flexible, and easy to install.
  • There is no system in the market today that can compete with the Versa Pro CT on price, features, coverage, and quality.
  • Add ClearOne’s Wall-Mount Bluetooth Expander and UNITE® cameras to complete your collaboration system.
Specification
24 MICROPHONES

Number of Beams: Two patterns, either 5 or 6 beams
Polar Pattern: Custom
Frequency Response: 150Hz – 16kHz, +/- 3dB
Dynamic Range: 150Hz – 16kHz, > 70dB
LED

4 LED indicators on one end of unit:
Mute/Un-mute configuration with 8 color options, two blink patterns and warning indications
CONFIGURATION

Beam enable/disable
Acoustic Echo Cancellation (AEC) on/off
Noise Cancellation (NC) on/off
Filters: All Pass, Low Pass, High Pass, Notch, PEQ
Automatic Level Control (ALC) on/off
Gain adjust
Mute on/off
Auto gate/Manual gate
P-LINK PERIPHERAL BUS

Ports labeled as “Expander” on Huddle Chassis, and “P-Link” on BMA CT
P-Link In & Out: Proprietary Network
– Ports Type: RJ-45
– Cable: RJ45 Cat5e, Cat6, Expandable
– Distance: Up to 200 ft.
POWER SELECTION SWITCH

Type: Slide Switch
Slide toward P-Link to power device by P-Link
Slide toward PoE to power device by PoE Injector
CONFIGURATION & ADMINISTRATION SOFTWARE

CONSOLE® AI Software
MOUNTING

Ceiling mount (24” or 600mm drop-ceiling grid)
POWER & THERMAL

Power Type: PoE
Port Type: RJ-45
Power Source: PoE Injector or equivalent
PoE: IEEE 802.3at compliant devices providing 56V and 640 mA (36 W).
P-Link In – Mode B
PoE In – Mode A and Mode B
*BMA CT requires its own PoE (IEEE 802.3 at compliant) if 2x10W speakers are driven
Power Consumption:
– 100-240VAC, 50/60Hz
– 9.1 Watt typical without speaker amp
– 38W at max power 1kHz (2 x 10W)
– Thermal: 130 BTU/Hr at max power
– Operating Temperature: 14° F/-10° C to 104° F/40° C ambient temperature
INPUTS

3 channel balanced audio mic/line inputs with AEC
1 channel balanced audio line input without AEC
3.81mm orange-color Phoenix/Euroblock type male header, push-on mini-terminal block
LINE OUTPUTS

2-channel balanced audio line outputs, 3.81mm black-color Phoenix/Euroblock type male header, push-on mini-terminal block
1 USB 3.0 Type-B
1 USB 3.0 Type-A
RJ-45, 10/100/1000Mbps, passthrough to USB-B 3.0
AMPLIFIER OUTPUT

Type: 5.08mm Black Header, Male, Phoenix type Euroblock
Speaker Output Port: Dual binding posts
Audio: 2 Channels
Output Power: 10W Max, 8Ω load
Frequency Response: 20Hz – 22kHz @ 10dBu, +/- 0.5dBu
THD + N (Total Harmonic Distortion + Noise):
20Hz – 22kHz @ 10dBu, 1W, <0.3%
Dynamic Range: 20Hz – 22kHz @ 20dB, >102dB with 20kHz digital low pass filter
Crosstalk (Mic/Line): Channel to Channel, stimulus at 20dBu to receptor, < -70dB
DIMENSIONS

CONVERGE HUDDLE
– 7.52” x 7.83” x 1.73” (191mm x 199mm x 44mm)
WEIGHT

CONVERGE HUDDLE – 2.9 lbs (1.32 kg) approx.
POWER OVER ETHERNET (PoE) REQUIREMENTS

If no built-in amps used on either the Huddle DSP or BMA CT, only 1 PoE+power supply is required for all 3 devices.
If built-in amps on Huddle DSP and/or BMA CT are used, two PoE+power supply units will be required; one for the Huddle DSP, one for the BMA CT.
No additional PoE+power supplies are required for use of the Bluetooth Expander
BMA CT MOUNTS FOR NON-TILE CEILINGS

910-3200-210 BMA Surface-Mount Kits 24in
910-3200-205-I BMA Surface-Mount Kits 600mm
910-3200-212 BMA Recessed-Mount Kits 24in
910-3200-212-I BMA Recessed-Mount Kits 600mm
PART NUMBERS

930-3200-206-U – COLLABORATE Versa Pro CT
INCLUDES

910-3200-205-I BMA CT 600mm
910-3200-701 CONVERGE® Huddle
910-3200-202 PoE power supply kit
