CONVERGE® Pro 2 120

CONVERGE® Pro 2 120

CONVERGE Pro 2 is the industry’s most advanced professional audio DSP platform for conferencing and sound reinforcement applications. It outperforms in any size room, audio environment, and application.

Description
  • Built-in Native Camera Tracking for ClearOne Unite cameras and many 3rd party cameras using RS-232 and Ethernet VISCA over IP.
  • 12 mic/line inputs with AEC.
  • Increased Mic/Line outputs for other CP2 units.
  • Inputs-only DSP mixer.
  • Built-in USB for PC-based conferencing.
  • Configure and manage entire system with New CONSOLE® software, Auto-discovery of devices, MatrixView™ for entire system, FlowView™ for visualized audio signal paths and System monitoring and troubleshooting.
  • DARE™ feedback elimination.
  • Standalone and daisy-chained system.
  • Expansion bus “C-Link” with 150 channels.
  • Stack up units up to 144 Mic/Line inputs.
  • Distributed Echo Cancellation® on every mic input.
  • Next-gen Acoustic Echo Cancellation processing.
  • “P-Link” bus to connect peripheral devices
  • Flexible control options include Touch-Panel Controller with tabletop and wall mount options, Dialer app for Windows, Mac, iOS, Android, and 3rd party control modules.
  • Reduced footprint and power consumption.
  • Acoustic Intelligence with faster convergence.
  • Advanced microphone gating.
  • Noise Cancellation with Adaptive-Ambience.
  • Daisy-chain the CONVERGE Pro 2 with the BMA 360, DIALOG® 20 2-Channel Wireless Microphone System, and other peripheral devices through P-Link.
Specification
PART NUMBER

910-3200-004
CAMERA TRACKING

Supported Cameras: Unite 150, Unite 200, Unite 160, Unite 260 (One Camera per DSP)
Communication Protocol: VISCA
Communication options: Serial (RS-232) or Ethernet (VISCA over IP)
MIC/LINE INPUTS & OUTPUTS

Inputs: Balanced audio inputs, 3.81 mm Orange color Phoenix/Euroblock type male header, Push-on miniterminal block
Frequency Response: 20 Hz – 22 kHz @ +4 dBu, +/- 0.5 dBu
EIN (Equivalent Input Noise): 20 kHz BW, max gain, Rs = 150 Ω, -126 dBu
THD + N (Total Harmonic Distortion + Noise):
– 20 Hz – 22 kHz @ +4 dBu, line level, 0.006%
– 20 Hz – 22 kHz @ -56 dBu, mic level, < 0.04%
Dynamic Range: 20 Hz – 20 kHz @ 0 dB, >105 dB
Crosstalk (Mic/Line): Channel to Channel, stimulus at 20 dBu to receptor at -56 dBu, 1 kHz, < -98 dB
Input Impedance: Balanced (line to ground), 2.2 kΩ, 1%
Nominal Input Level: Adjustable -56 dB to 0 dB, 7 dB step coarse gain
Maximum Input Level: -65 dBu to 20 dBu
Phantom Power: 48 V, Impedance 6.81 kΩ
USB AUDIO

Port Type: USB-B connector
Audio: Digital Audio, 2 x 2 bidirectional channels
Sample Rate: 48 kHz
Sample Bit Depth: 24-Bit
Compatible: USB 2.0, USB 3.0
ETHERNET

Port Type: RJ-45, 10/100 Mbps Ethernet Network, Auto Negotiation
IP address: IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)
C-LINK EXPANSION BUS

Ports Type: RJ-45 (Cat 5e or Cat 6)
C-Link In & Out: Proprietary Expansion Bus
Audio: 150 Expansion channels
Cable: Solid core, factory terminated Cat 5e or 6 cable
Distance: Up to 80’ (24 m)
P-LINK PERIPHERAL BUS

Ports Type: RJ-45 (Cat 5e or Cat 6)
P-Link In & Out: Proprietary Peripheral Bus
PoE In:
– P-Link In Port
– PoE 802.3 af Mode B, Midspan
– Power on “spare pairs” 4, 5 and 7, 8
– Input voltage range: 48 V to 56 V
Audio: Up to 3 Beamforming Microphone Array 2 units + up to 3 DIALOG 20 Wireless Receiver units + Up to 3 USB Expander units + Up to 3 GPIO Expander units
Cable: Solid core, factory terminated Cat 5e or 6 cable
Distance: Up to 200’ (60 m)
RS-232

Port Type: DB9 Female
Settings: 9600/19200/38400/57600/115200 Baud; Serial Echo; Flow Control
Support: Serial commands
GPIO

Port Type: 5.08 mm Green color Phoenix/Euroblock type male header
Support: Control, Status, Variable Voltage Control
Power Pin: 5 VDC @ 350 mA Power Source
Pin 1 to 4:
– Open Collector Outputs: 40 VDC @ 250 mA
– Active Outputs (Source/Sink): 5 VDC @ 25 mA
– Logic Inputs: 40.2 kΩ pull up
– Variable Voltage Control Inputs: 5 VDC max
Ground Pin: GND

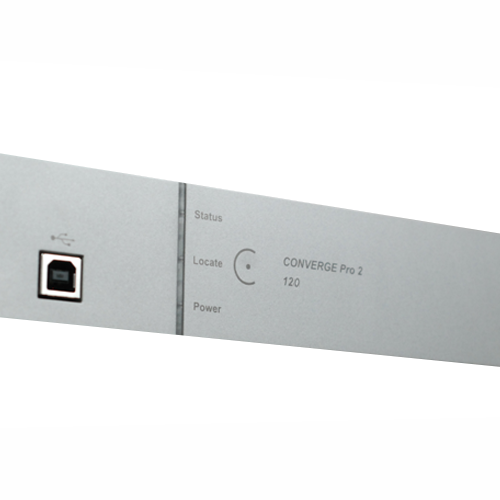

USB CONTROL

Port Type: USB-B connector
Location: Front Panel
Compatible: USB 2.0, USB 3.0
LEDs

Location: Front Panel
Status LED:
– Off: Unit still initializing
– Blue – Fast Blinking: Stack Syncing in progress
– Blue – Slow Blinking: Unit not configured
– Blue – Solid: Configured unit
– Red – Fast Blinking: Stack Sync error
Locate LED: Blue – Blinking: Unit “Locate” command received
Power LED: Blue – Solid: Unit is powered on
TOUCH SENSOR

Sensor Type: Capacitive Touch Button
Location: Front Panel
POWER & THERMAL

Port Type: AC Inlet
Mains Voltage: 100-240 VAC, 50/60 Hz
Power Consumption: 50 Watts Typical
Thermal: 170 BTU/Hr Typical
Operating Temperature: 14 °F (-10 °C) to 104 °F (40 °C) Ambient Temperature
DIMENSION & WEIGHT

RU size: 1 RU
Width x Depth x Height:
– Without rack-ears: 17.1 x 10.7 x 1.7 ” (431 x 273 x 44 mm)
– With rack-ears: 19.1 x 10.7 x 1.7 “ (483 x 273 x 44 mm))
Unit Weight: 9.3 lbs (4.2 Kg) (Approximately)
Shipping Weight: 13.8 lbs (6.3 Kg) (Approximately)
PACKAGE

Power Cord: 6’ (1.8 m), Grounded, Qty 1
Input Connectors: Terminal Block Connector, 4 Position (Orange), Qty 12
GPIO Connector: Terminal Block Connector, 6 Position (Green), Qty 1
C-Link Cable: RJ-45 To RJ-45 Cable, 18” (45.7 cm), Qty 1
USB Cable: USB Type A to Type B, 6 ’ (1.8 m), Qty 1
Rack Ears: Pre-installed, Qty 2
Screw/Washer Kit: Rack Decor, Qty 4
