| PART NUMBER |
910-3200-009
|
| CAMERA TRACKING |
Supported Cameras: Unite 150, Unite 200, Unite 160, Unite 260 (One Camera per DSP)
Communication Protocol: VISCA
Communication options: Serial (RS-232) or Ethernet (VISCA over IP)
|
| USB AUDIO |
Port Type: USB-B connector
Audio: Digital Audio, 2 x 2 bi-directional channels
Sample Rate: 48 kHz
Sample Bit Depth: 24-Bit
Compatible: USB 2.0, USB 3.0
|
| TELEPHONE |
Port Type: RJ-11
Frequency Response:
– Mic/Line Input to Telephone Out: 250 Hz – 3.4 kHz , +/- 2 dB, 4 dBu
– Telephone In to Mic/Line Out: 250 Hz – 3.4 kHz, +/- 2 dB, -15 dBu
THD + N:
– Mic/Line Input to Telephone Out: < 0.1 % @ 4 dBu
– Telephone In to Mic/Line Out: < 0.3 % @ -15 dBu
Dynamic Range:
– Mic/Line Input to Telephone Out: > 67 dBu
– Telephone In to Mic/Line Out: > 87 dBu
– REN: Ringer Equivalent Number 0.2
Transhybrid Balance: 30 dB (1 kHz, all AC terminations)
|
| VOIP |
Port Type: RJ-45, 10/100 Mbps Ethernet Network, Auto Negotiation
Audio: 5 Lines
Codec: G.711 uLaw, G.711 ALaw, G.722
|
| ETHERNET |
Port Type: RJ-45, 10/100 Mbps Ethernet Network, Auto Negotiation
IP address: IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)
|
| C-LINK EXPANSION BUS |
Ports Type: RJ-45 (Cat 5e or Cat 6)
C-Link In & Out: Proprietary Expansion Bus
Audio: 64 Expansion channels
Cable: Solid core, factory terminated Cat 5e or 6 cable
Distance:Up to 80 ’ (24 m)
|
| P-LINK PERIPHERAL BUS |
Ports Type: RJ-45 (Cat 5e or Cat 6)
P-Link Out: Proprietary Peripheral Bus
PoE In:
– PoE 802.3 af Mode B, Midspan
– Power on “spare pairs” 4, 5 and 7, 8
– Input voltage range: 48 V to 56 V
Audio: Up to 3 Beamforming Microphone Array 2 units + up to 3 DIALOG 20 Wireless Receiver units + Up to 3 USB Expander units + Up to 3 GPIO Expander units
Cable: Solid core, factory terminated Cat 5e or 6 cable
Distance: Up to 200 ’ (60 m)
|
| RS-232 |
Port Type: DB9 Female
Settings: 9600/19200/38400/57600/115200 Baud; Serial Echo; Flow Control
Support: Serial commands
|
| GPIO |
Port Type: 5.08 mm Green color Phoenix/Euroblock type male header
Support: Control, Status, Variable Voltage Control
Power Pin: 5 VDC @ 350 mA Power Source
Pin 1 to 4:
– Open Collector Outputs: 40 VDC @ 250 mA
– Active Outputs (Source/Sink): 5 VDC @25 mA
– Logic Inputs: 40.2 kΩ pull up
– Variable Voltage Control Inputs: 5 VDC max
Ground Pin: GND
|
| USB CONTROL |
Port Type: USB-B connector
Location: Front Panel
Compatible: USB 2.0, USB 3.0
|

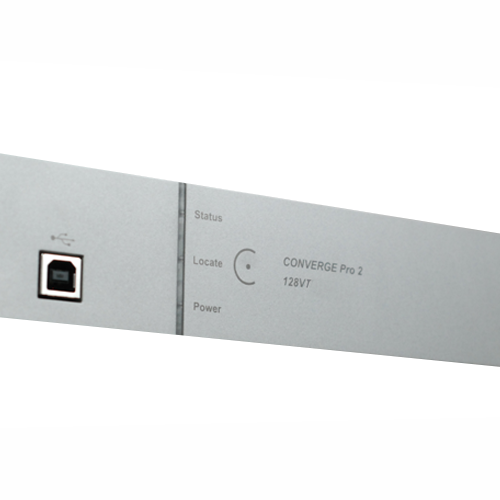

| LEDs |
Location: Front Panel
Status LED:
Off: Unit still initializing
Blue – Fast Blinking: Stack Syncing in progress
Blue – Slow Blinking: Unit not configured
Blue – Solid: Configured unit
Red – Fast Blinking: Stack Sync error
Locate LED: Blue – Blinking: Unit “Locate” command received
Power LED: Blue – Solid: Unit is powered on
|
| LOCATE BUTTON |
Sensor Type: Capacitive Touch Button
Location: Front Panel
|
| POWER & THERMAL |
Port Type: AC Inlet
Mains Voltage: 100-240 VAC, 50/60 Hz
Power Consumption: 50 Watts Typical
Thermal: 170 BTU/Hr Typical
Operating Temperature: 14 °F (-10 °C) to 104° F (40 °C) Ambient Temperature
|
| DIMENSION & WEIGHT |
RU size: 1 RU
Width x Depth x Height:
– Without rack-ears: 17.1 x 10.7 x 1.7 “ (431 x 273 x 44 mm)
– With rack-ears: 19.1 x 10.7 x 1.7 “ (483 x 273 x 44 mm)
Unit Weight: 9.3 lbs (4.2 Kg) (Approximately)
Shipping Weight: 13.8 lbs (6.3 Kg) (Approximately)
|
| PACKAGE |
Power Cord: 6 ‘ (1.8 m), Grounded, Qty 1
Input Connectors: Terminal Block Connector, 3 Position (Orange), Qty 12
Output Connectors: Terminal Block Connector, 3 Position (Black), Qty 8
GPIO Connector: Terminal Block Connector, 6 Position (Green), Qty 1
C-Link Cable: RJ-45 To RJ-45 Cable, 18 in (45.7 cm) to 18 " , Qty 1
VoIP Cable: RJ-45 To RJ-45, 7 ‘ (2 m), Qty 1
USB Cable: USB Type A to Type B, 6 ‘ (1.8 m), Qty 1
Rack Ears: Pre-installed, Qty 2
Screw/Washer Kit: Rack Decor, Qty 4
|
