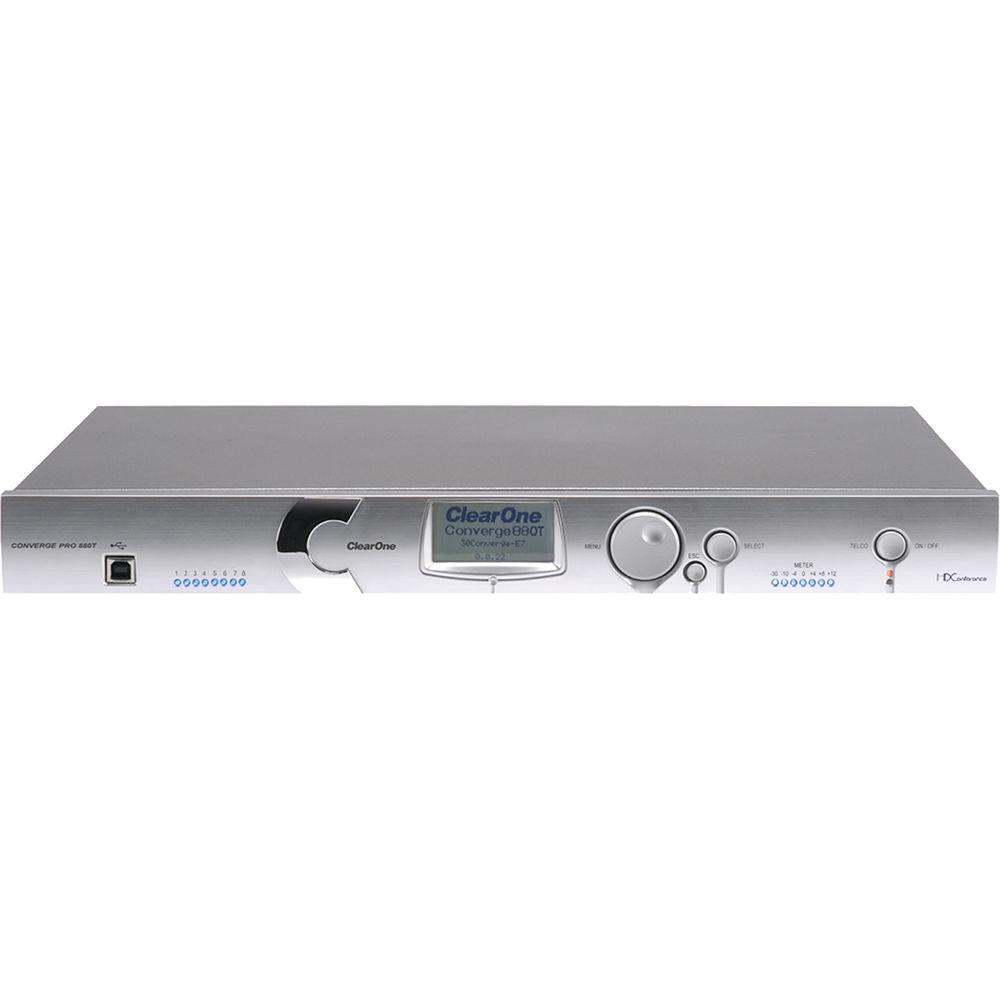

CONVERGE Pro 880T
The CONVERGE Pro 880T combines the rich functionality of the CONVERGE Pro 880 with a built-in telephone interface and speaker amplifier for standalone conferencing applications. The 880T delivers enhanced management features, simplified configuration tools, and industryleading expandability for virtually any venue or application.
Advanced Conferencing Feature Set
+ Next-generation Acoustical Echo Cancellation
> Full bandwidth (20Hz to 22Khz) echo cancellation
> Improved duplex performance
> Push-to-talk microphone compatibility
+ Next-generation Noise Cancellation
> Adaptive modeling to room ambient noise condition
+ Increased resolution on Microphone Preamp stage
> 0-56 dB in 7 dB increments
+ Pre-AEC routing for Sound-Reinforcement Applications
> Maximum of 4 millisecond processing delay
+ Management Improvements
> Integrated Ethernet and USB connections
> SNMP and HTML remote management agents
> Event scheduler
> Diagnostic console
+ Simplified Configuration Software
> Drag & drop A/V and channel objects
> Selectable views—unit, matrix, channel
+ Expanded Serial Command List
Superior Audio Performance
+ Next-generation Distributed Echo Cancellation® on every mic input
+ First-mic priority delivers clear audio to the far end
+ 20 Hz-22 kHz bandwidth for full-range audio response
+ ALC & AGC keep participants’ audio balanced and consistent
Configuration Flexibility
+ Built-in telephone interface and 10W power amplifier
+ Scalable – link multiple CONVERGE/CONVERGE Pro units for extensive microphone coverage and up to 16 phone lines
+ Enhanced expansion bus, featuring 18 mix-minus audio buses for routing between units
+ Ten mic gating groups (four internal & six global) allow separation of mics into individual mixer gating groups for greater configuration flexibility
+ 32 presets can be executed on-the-fly without disturbing other ongoing preset operations
+ 255 Macros for customized audio control/configuration with single command execution
| Audio Performance | Conditions: Unless otherwise specified, all measurements are performed with a 20 Hz to 22 kHz |
|---|---|
| Auto Mixer Parameters | Number of Open Microphones (NOM) |
| Matrix Mixing Parameters | 12 analog in/out |
| Assignable Processing Blocks | Filters |
| Assignable Fader Blocks | Gain/Mute |
| Microphone Input Configuration | Input Gain Adjust |
| Mic/Line Inputs 1-8 | Push-on mini-terminal block, balanced, bridging |
| Line Inputs 9-12 | Push-on mini-terminal block, balanced, bridging |
| Outputs 1-12 | Push-on mini-terminal block, balanced |
| Amplifier Output | Binding Post Connection |
| Telco Line Port | RJ-11 POTS (plain old telephone service) or |
| Telco Set Port | Pass-though RJ-11 analog jack |
| Telephone Audio Performance | Conditions: Unless otherwise specified, all measurements are performed with Transmit Limiter and Receive ALC disabled |
| Telco Line Echo Cancellation | Tail Time: 31 ms |
| Telephone Noise Cancellation | Noise Cancellation 6-15 dB attenuation |
| Expansion Bus In/Out | Proprietary Network |
| Ethernet | Autoswitching with Quality of Connection (QoC) |
| RS-232 | Serial Command Protocol Only (Console software not supported on RS- 232 port) |
| Control/Status Ports | DB-25 female A/B (2) |
| USB | Version 2.0 compatible |
| Configuration & Admin Software | CONVERGE® CONSOLE® |
| Power Input Range | Auto-Adjusting |
| Power Consumption | 30 W Typical |
| Dimensions (L x D x H) | 17.25” x 10.25” x 1.75” |
| Weight | 7.5 lbs/3.3375 kg unit weight |
| Operating Temperature | 14° F/-10° C to 122° F/50° C |
| Approvals | See the Installation & Operation Manual for complete details |
| Optional Accessories | CONVERGE Pro 880 |
