CONVERGE PRO 840T

CONVERGE PRO 840T

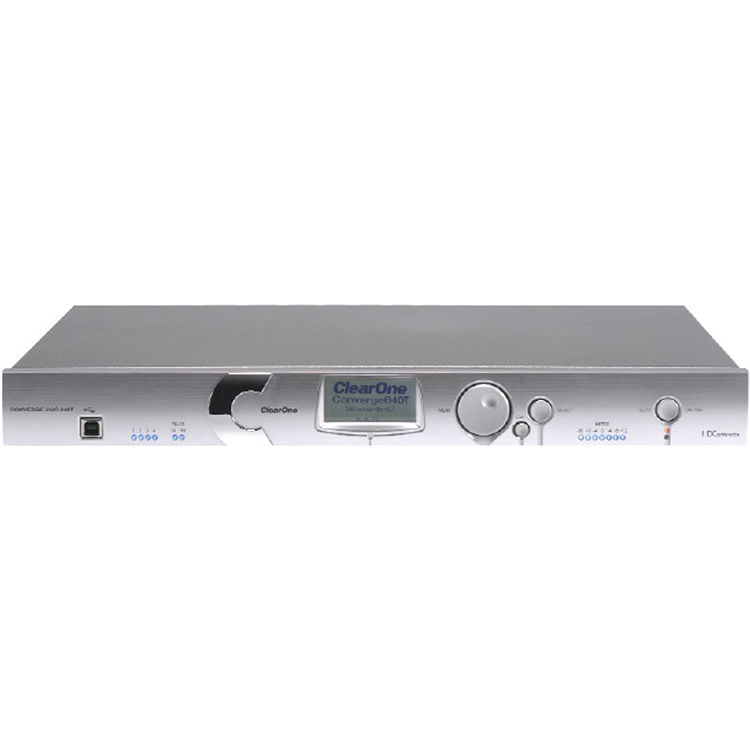

The successor to the industry-leading XAP 400. Leveraging the rich functionality, audio performance, and flexibility offered by the flagship Convergetm Pro 880, the new 840T includes a built-in telephone interface and power amplifier for standalone conferencing capabilities. It also provides expansion capability with other Converge Pro mixers for complex installations.

Description

Advanced Conferencing Feature Set
+ Next-generation Acoustical Echo Cancellation
> Improved duplex performance
> Push-to-talk microphone compatibility
+ Next-generation Noise Cancellation
> Adaptive modeling to room ambient noise condition
+ Increased resolution on Microphone Preamp stage
> 0-56 dB in 7 dB increments
+ Pre-AEC routing for Sound Reinforcement Applications
> Maximum of 4 millisecond processing delay
+ Management Improvements
> Integrated Ethernet and USB connections
> SNMP and HTML remote management agents
> Event scheduler
> Diagnostic console
+ Simplified Configuration Software
> Drag & drop A/V and channel objects
> Selectable views—unit, matrix, channel
+ Expanded Serial Command List

Superior Audio Performance
+ Next-generation Distributed Echo Cancellation® on every mic input
+ First-mic priority delivers clear audio to the far end
+ 20 Hz-22 kHz bandwidth for full-range audio response
+ ALC & AGC keep participants’ audio balanced and consistent

Configuration Flexibility
+ Scalable – link multiple Converge Pro units for extensive microphone coverage and up to 16
phone lines
+ Enhanced expansion bus, featuring 18 mix-minus audio buses for routing between
units
+ Ten mic gating groups (four internal & six global) allow separation of mics into
individual mixer gating groups for greater configuration flexibility
+ 255 Macros for customized audio control/configuration with single command
execution

Conferencing Capability
+ Built-in telephone interface and power amplifier
+ Link with multiple Converge Pro TH20s for up to 16-line capability
+ Also link to Converge Pro 880 or 8i for additional inputs and outputs

Specification
Audio Performance

Conditions: Unless otherwise specified, all measurements are performed with a 20 Hz to 22 kHz BW limit (no weighting)
Frequency Response: 20 Hz to 22 kHz ±1dB
Noise (EIN): -126 dBu, 20 kHz BW, max gain,
Rs=150 Ω
THD+N: <0.02%
Dynamic Range: 100 dB (non A-weighted)
Crosstalk <-91 dB re 20 dBu @ 20 kHz channel to channel
Auto Mixer Parameters

Number of Open Microphones (NOM)
PA Adaptive Mode
First Mic Priority Mode
Last Mic Mode
Maximum # of Mics Mode
Ambient Level
Gate Threshold Adjust
Off Attenuation Adjust
Hold Time
Decay Rate
Matrix Mixing Parameters

29×30 matrix
8 analog in/out
1 speaker out (amplified)
12 expansion bus in/out
4 assignable processing blocks in/out
4 assignable fader blocks in/out
1 telco in/out
Assignable Processing Blocks

Filters:
– All pass
– Low pass
– High pass
– Low shelving
– High shelving
– Parametric EQ
– Notch
– CD Horn
Crossovers:
– Bessel
– Butterworth
– Linkwitz-Riley
Compressor
Delay; adjustable up to 250 ms
Assignable Fader Blocks

Gain/Mute
Microphone Input Configuration

Input Gain Adjust
Mic or Line Level
Phantom Power on/off
Echo Cancellation on/off
Noise Cancellation on/off
Filters:
– All Pass
– Low Pass
– High Pass
– Notch
– PEQ
Mute on/off
Chairman Override on/off
AGC on/off
Automatic Level Control on/off
Auto Gate/Manual gate
Adaptive Ambient on/off
Pre AEC channe
Mic/Line Inputs 1-4

Push-on mini-terminal block, balanced, bridging
Impedance: < 10 KΩ
Nominal Level: adjustable -56 dBu to 0 dBu
(7 dB step coarse gain adjustment)
Maximum Level: -65 dBu to +20 dBu
Echo Cancellation: 130 ms tail time (works with
12 dB of room gain)
Noise Cancellation: 6–15 dB attenuation
Phantom Power: 24 V, selectable
Line Inputs 5-8

Push-on mini-terminal block, balanced, bridging
Impedance: > 5 KΩ
Nominal Level: 0 dBu
Maximum Level: 20 dBu
Outputs 1-8

Push-on mini-terminal block, balanced
Impedance: < 50 Ω
Nominal Level: 0 dBu
Maximum Level: 20 dBu
Amplifier Output

Binding post connection
10 Watts @ 4 Ω Impedance
THD + Noise: <0.5%
Telco Line

RJ-11
POTS (plain old telephone service) or
analog extension from a PBX
A-lead supervision provided
Telco Set

RJ-11
POTS (plain old telephone service) or
analog extension from a PBX
A-lead supervision provided
Telephone Audio Performance

Conditions: Unless otherwise specified,
all measurements are performed with
Transmit Limiter and Receive ALC disabled
Frequency Response: 250 Hz to 3.3 kHz ±1 dB
THD+N: <0.3%, re-max level 250 Hz to 3.3 kHz
SNR: >62 dB re max level
Telephone Echo Cancellation

Tail Time: 31 ms
Null: 55 dB nominal
Telephone Noise Cancellation

Noise Cancellation: 6–15 dB attenuation
Expansion Bus In/Out

Proprietary Network
RJ-45 (2), 1.9 Mbps
Category 5 twisted-pair cable, 200’ maximum
cable length between any two Converge Pro
devices
Ethernet

Autoswitching with Quality of Connection (QoC)
10/100 Ethernet Network Port
10/100 Ethernet PC Port
RJ-45 Connectors
RS-232

Serial Command Protocol Only (Console
software not supported on RS-232 port)
DB-9 female
9,600/19,200/38,400/57,600/115,200 baud rate;
8 bits, 1 stop, no parity
Hardware flow control on (default)/off
USB

Version 2.0 Compatible
Type: B-connector
Control/Status

DB-25 female A/B (2)
Inputs A/B: active low (pull to ground)
Outputs A/B: open collector, 40 VDC max,
40 mA each
+3.3 VDC pins (2) (300 mA over-current
protected)
Configuration & Administration Software

Convergetm Console
Power Input Range

Power Input Auto-adjusting
100–240 VAC; 50/60 HzRange
Power Consumption

30W Typical
Dimensions (L x D x H)

17.25” x 10.25” x 1.75”
43.8 x 26 x 4.5 cm
Weight

7.5 lbs/3.3375 kg unit weight
12 lbs/5.4kg shipping weight
Operating Temperature

14° F/-10° C to 122° F/50° C ambient room
temperature
Approvals & Compliance

AES48-2005: AES standard on interconnections
— Grounding and EMC practices — Shields
of connectors in audio equipment containing
active circuitry (self certified)
U.S.A. & Canada
CSA safety listed
EU Countries
RoHS compliant
WEEE compliant
See product manual for additional details
