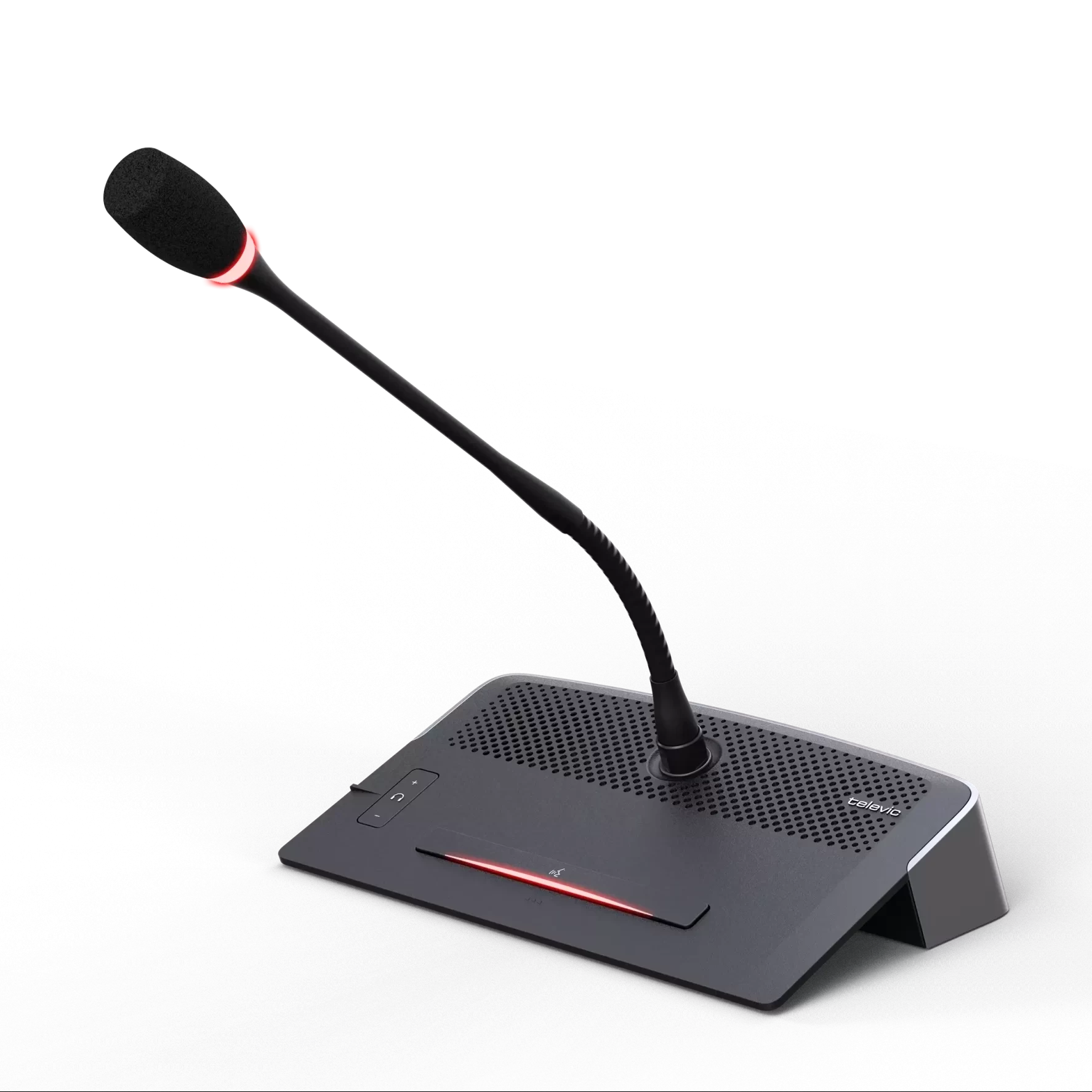

D-Cerno D SL

With its sleek and compact form factor, D-Cerno SL guarantees zero mobile-phone interference and a great digital sound quality. It is equipped with tactile buttons, braille indicators, headphone connections and volume control. The chairperson units have dedicated functionalities with Next-in-line and Priority buttons.

The chairperson units have extra functionalities, such as Next-in-line and Priority buttons. The microphone is removable (different lengths are available – just order them separately) and the cable connections are concealed for a neat overall look and feel.

Description

D-Cerno combines sleek design with digital signal processing and plug-and-play functionality.

Stylish, discreet, and unobtrusive with a low profile: the D-Cerno D SL is at home in any meeting room.

The system is completely based on digital signal processing. The result is crystal-clear sound and excellent intelligibility. Two cornerstones of any successful meeting.

In a global, interconnected world where communication is crucial, immunity to typical mobile phone interference is simply a must. D-Cerno’s shielded microphone eliminates these disturbances, so delegates can focus on the essence of the meeting.

The system is designed to work out-of-the-box, with hardly any technical expertise required. Wiring is easy: simply connect shielded Cat 5 cables from unit to unit. What’s more, there is no need to worry about the IN and OUT port since the unit detects the direction of the signal flow automatically. It makes cabling errors virtually impossible.

The system has the added benefit of easy extensibility: increasing or decreasing the number of units is a breeze. It makes D-Cerno ideal for rental use.

The D-Cerno D SL is compatible with screw-lock D-MIC microphones in 30, 40, 50, or 70 cm.

Specification
Material

PC/ABS & Zamak

Color

Black

Size (mm)

211.4 × 136 × 48.2 mm

Size packed (mm)

250 × 150 × 90 mm

Weight

760g

Weight packed

975g

Power Supply

48 DC, over Cat5 cable

Power consumption

2 W

Audio quality

16 bit digital

Frequency response

25 Hz-15,000 Hz (± 3 dB)

Impedance

16-150 Ω

Output level

Max 70 mW 32 Ω

Rated power

4 W

Mean sound pressure level

80 dB SPL at 1m

Operating temperature

5 to 50 °C

Humidity

Protection class EP10 Com-pliant to IEC 60069_2.14
