DIALOG 20

DIALOG 20

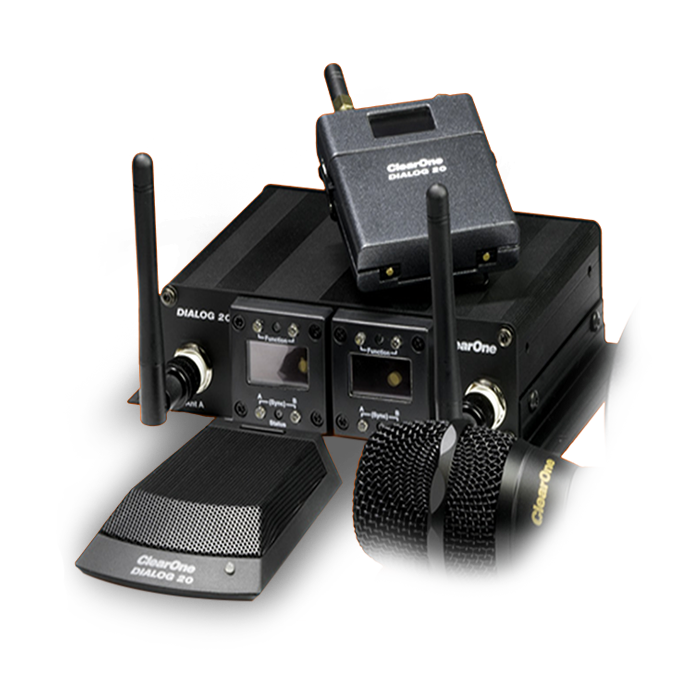

A flexible, high quality 2-channel solution for adding a couple microphones to small conferencing spaces, or adding sound reinforcement microphones to large conference and training areas.

Description
  • Robust 2-channel solution containing four different types of mic transmitters, charging dock, and spatial diversity antenna system.
  • Digitally connects with ClearOne’s audio DSP mixers via P-Link for power, audio & control; and compatible with any 3rd-party DSP mixer.
  • Free design and commissioning services expedite the design of simple or complex projects.
  • Wide audio bandwidth provides superior speech clarity and low audio latency enables effective AEC processing.
  • Includes 2 32-channel global RF bands, with multiple bands per region, for more potential available mic channels than single-band DECT systems.
  • The most options for transmitter powering and charging of any wireless system.
  • Compact plenum-rated receiver can be installed in a rack, on a table, wall, ceiling or above the ceiling .
  • Represents incredible value that fits more project budgets with aggressive MSRP & dealer pricing.
  • Highly secure, using “always-on” AES128-bit encryption adaptive spread-spectrum frequency hopping transmission.
  • Work seamlessly with ClearOne Audio & Video products and other 3rd-party systems.
  • Easy configuration and management through the full-featured software.
  • Includes industry-leading 3-year warranty with additional extension options.
Specification
DIALOG 20 – 2 Channel Wireless Microphone System

Frequency Response: 20Hz to 20kHz
Audio Sampling: 24-bit 48kHz
RF Frequency: 2.4 GHz to 2.483 GHz
Adaptive Frequency Hopping Spread Spectrum
Signal-to-Noise ratio: 109 dB(A)
Encryption: AES 128-bit
RF Range: 30m
Latency: <4ms
Receiver (Base Station)

RF Sensitivity: -89 dBm
RF Output Power: 1 mW
Display: OLED (for each receiver channel, on the front panel)
Audio Output: +4dBu
Audio Connection: XLR, ¼”TRS
Antenna Connection: TNC 50 ohm
GPIO: 3.5mm 6 pin terminal block
Power Supply: Micro-USB / PoE / P-link
P-Link: Peripheral link for CONVERGE® Pro 2, Beamforming Mic Array 2, USB Expander & GPIO Expander
Power Consumption: 2W
Antenna: Built-in dipole Antenna. Antenna can be extended to 10 or 25 ft
Mounting: Rack-shelf, wall, ceiling mountable
Dimension [W x H x D]: 172 x 42.3 x 127.5mm (6.77” x 1.67” x 5.01”)
Weight: 0.43kg (0.95lbs)
Transmitters (Microphones)

RF Output Power: 1mW, 10mW
Display: OLED (Handheld and Beltpack only)
Power Supply: NiMH, Alkaline, USB, Charger Dock
Battery: Standard AA size, rechargeable batteries
2 AA batteries for Tabletop, Handheld and Beltpack
4 AA batteries for Gooseneck
Talk time: 2 AA= ~12hrs, 4 AA= ~15hrs
Programmable Button: PTT (Push to talk), PTM (Push to mute), Toggle
Transmitter Types

Tabletop/Boundary Cardioid
Tabletop/Boundary Omni
Gooseneck/Podium Cardioid, 6” neck
Gooseneck/Podium Cardioid, 12” neck
Gooseneck/Podium Cardioid, 18” neck
Handheld with ClearOne H18, Condenser, Cardioid Microphone capsule
Handheld Transmitter with ClearOne H13, Dynamic, Super Cardioid
Microphone capsule
Handheld Transmitter with Audix OM5, Dynamic, Hyper Cardioid
Microphone capsule
Beltpack Transmitter
Accessories

Lavalier Omni Microphone for Beltpack
Lavalier Cardioid Microphone for Beltpack
Single-ear Headset Omni, Black Microphone for Beltpack
Single-ear Headset Omni, Tan Microphone for Beltpack
Docking Station (8 bay charging station)
Wireless Extension cables pair for Dipole Antenna,10 Ft, with mounting adapter
Wireless Extension cables pair for Dipole Antenna, 25 Ft, with mounting adapter
