F22

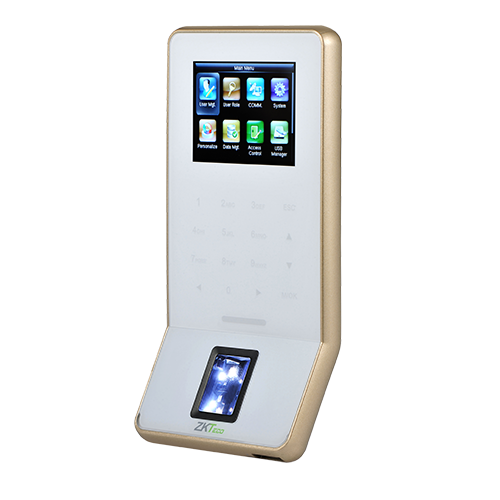

F22 is an ultra-thin fingerprint time attendance and access control terminal with Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZKTeco high-performance, high-image quality infrared detection fingerprint sensor.
F22 is an ultra-thin fingerprint time attendance and access control terminal with Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZKTeco high-performance, high-image quality infrared detection fingerprint sensor.
F22 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP and Wi-Fi are also available that the device can be used in different networks.
| Display | 2.4-inch TFT LCD Color Screen |
|---|---|
| Fingerprint Capacity (optional) | 3,000 |
| Card Capacity | 5000(Optional) ID or Mifare card |
| Transaction Capacity | 30,000 |
| Sensor | Z-ID Sensor |
| Algorithm Version | ZKFinger V10.0 |
| Communication | RS232*, RS485*, TCP / IP, USB-host, Wi-Fi |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm |
| Wiegand Signal | Input, Output |
| Aux. Input | 1ea for linkage function |
| Functions | DST, Automatic Status Switch (Optional), Record query, T9 input,14 digit user ID (Optional), Anti-passback, Scheduled-Bell, Printer(Optional), ADMS |
| Power Supply | 12V DC, 3A |
| Operating Temperature | 0 °C – 45 °C |
| Operating Humidity | 20% – 80% |
| Dimension | 158.5 x 78.0 x 19.4mm (LxWxH) |
| SDK and Software | Standalone SDK, ZKBio Access IVS |
