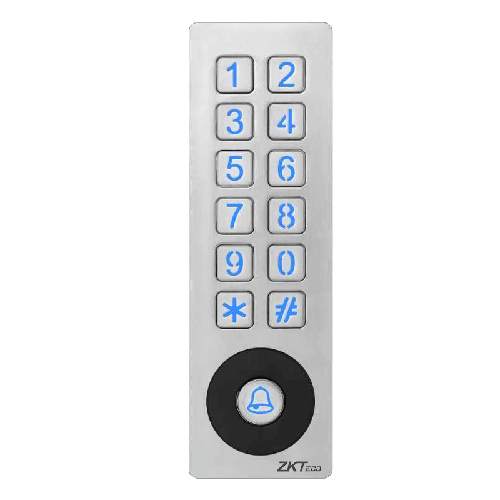

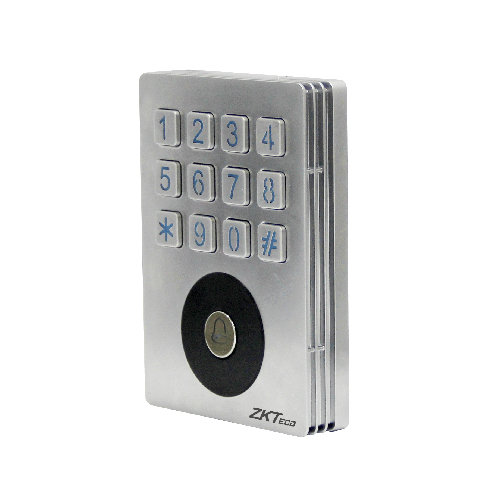

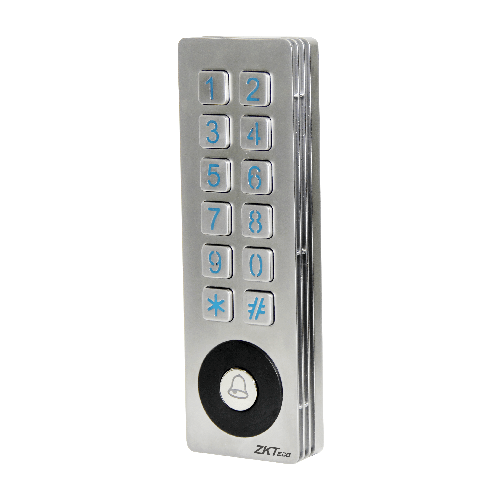

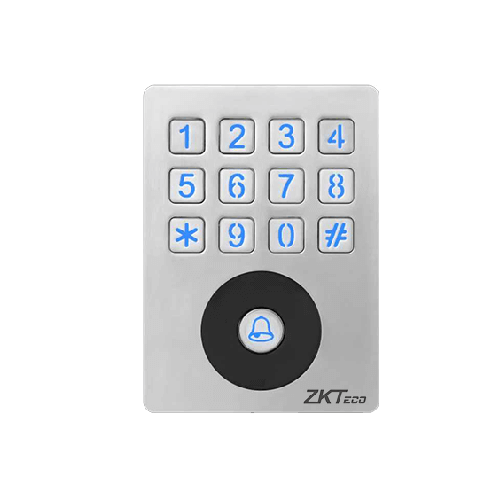

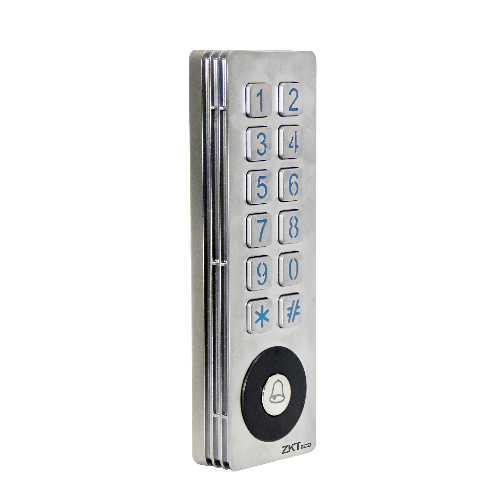

SKW-V & SKW-H
SKW-V and SKW-H are waterproof standalone access control devices with an IP65 metal case and a keypad. The device supports verification with passwords and RFID cards. SKW-V and SKW-H can either be used as readers connecting with a control panel or as A&C standalone devices.
SKW-V and SKW-H are waterproof standalone access control devices with an IP65 metal case and a keypad. The device supports verification with passwords and RFID cards. SKW-V and SKW-H can either be used as readers connecting with a control panel or as A&C standalone devices.
| Model | SKW-V / SKW-H |
|---|---|
| Operating Frequency | 125KHz / 13.56MHz |
| RFID Type | EM Card / ISO 14440 Type A, S50 / S70 |
| Ingress Protection Rating | IP65 |
| Operating Voltage | DC9 – 14V |
| Operating Temperature | -10°C ~ 60°C (14°F ~ 140°F) |
| Humidity Storage | 15% ~ 90% |
| Dimension | SKW-V: 160 * 50 * 20.5 (mm) (±3 mm) (L*W*H) |
| User Capacity | 5,000 |
| Password Capacity | 5,000 |
| Password | 4 to 6 digits |
| Verification Method | Card Only / Password Only / Card + Password / 1 Relay / 1 Door Sensor / 1 Exit Button / 1 Doorbell / 1 Tamper Alarm |
| Reader | Wiegand Reader W26 / W34 |
