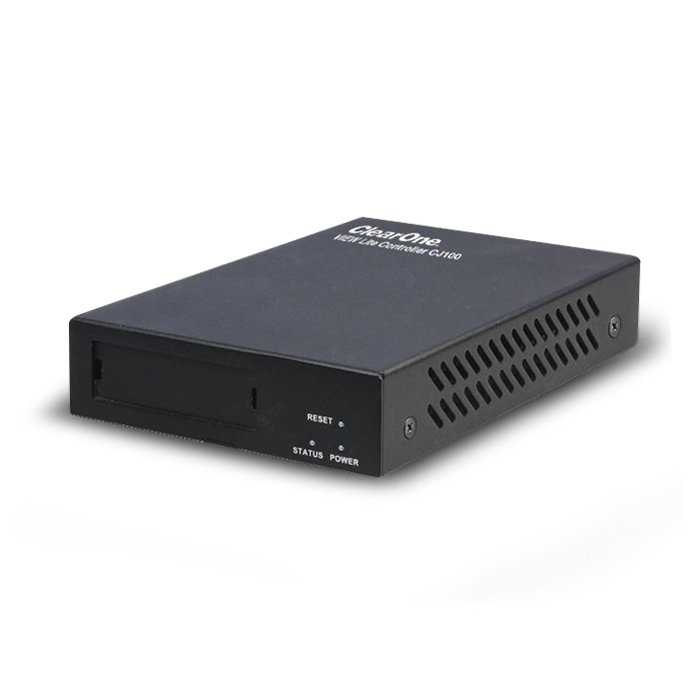

VIEW® Lite Controller CJ100

VIEW® Lite Controller CJ100

VIEW Lite AV over IP streaming system’s IP Controller for integrating with 3rdparty control systems.

Description

Very low end-to-end (glass-to-glass) latency of around 1.5 frames / 25 ms
Up to 4K60 resolution support
PoE and DC power options
High bandwidth requirement of around 850 Mbps
USB HID for source control through keyboard and mouse

Specification

Control	Serial RS232 Port: – RS232 Pins TX, RX, G are used for device troubleshooting only – Pins G, RX, TX are used for controlling, configuring and managing system – Pins G, 12V are used for providing a 12 VDC 0.5 A output LAN1 (AV/PoE): – RJ-45 Ethernet jack with PoE support – IEEE 802.3AF PoE PD standard – 10/100/1000Mbps Ethernet Port – Connects to a switch for communication with encoders and decoders on the same network. LAN2 (C): – RJ-45 Ethernet jack without PoE. -Used for 3rd-party controller controlling, configuring and managing system.
Mechanical	Dimensions (W x H x D): – 3.67” × 1.02” × 5.46” (93mm × 26mm × 139mm) Weight: 0.84 lbs (0.38 kg) Mounting: Mounting ears included Operating Temperature: 32 to 104 °F (0 to 40 °C)
General	Reset: Factory reset by pressing the button continuously for 5 seconds LEDs: – Status : Illuminates Blue when IP controller is working properly; otherwise LED is off. – Power : Illuminates Red when power is applied from PoE or external power supply. Power: 12V 1A DC power supply with locking (included)
