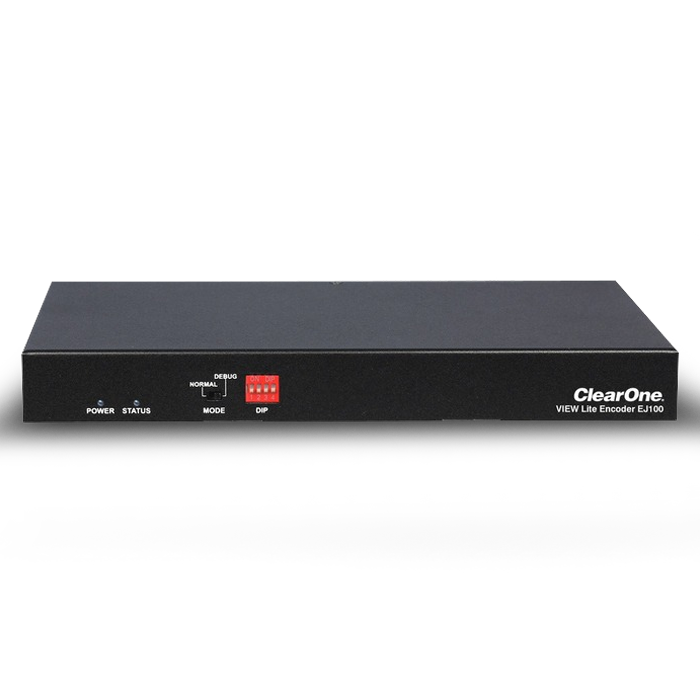

VIEW® Lite Encoder EJ100

VIEW® Lite Encoder EJ100

Single channel AV Encoder using JPEG2000 codec for simple AV over IP streaming and distribution application over a dedicated network

Description

Very low end-to-end (glass-to-glass) latency of around 1.5 frames / 25 ms
Up to 4K60 resolution support
Local loop-back HDMI output
High bandwidth requirement of around 850 Mbps
USB HID for source control through keyboard and mouse
PoE and DC power options

Specification

Video	Codec: JPEG2000 Bandwidth: 850 Mbps HDMI IN: – X1 – Single Source HDMI input – Resolution support up to 4K@24/30Hz 4:4:4, 8-bit, 4K@50/60Hz 4:2:0, 8 bit, with multi-channel audio – HDCP 2.2 compliant HDMI OUT – X1 – A local HDMI loopback output (for video and audio) which is split from the HDMI Input that mirrors the resolution of the input
Audio	Audio In: 3.5mm jack for analog audio input that replaces the HDMI audio when plugged in Audio Output: 3.5mm jack for analog audio output extract from HDMI
Control	Serial RS232 Port: 3.5mm phoenix jack for the serial data transmission IR Input: 3.5mm phone jack for IR receiving IR Output: 3.5mm IR jack for IR transmitting USB Host: – USB Type-B connector – Connect to PC or other HID controlled device for USB HID signal transmission
General	LAN / PoE: – RJ-45 Ethernet jack with PoE support – IEEE 802.3AF PoE PD standard – 10/100/1000Mbps Ethernet Port Reset:Factory reset by pressing the button continuously for 5 seconds Modes: – NORMAL: Encoder’s RS232 is working for serial data transmission – DEBUG: Encoder’s RS232 is working for DEBUG DIP: For quick setting of multiple units working in the same network without Controller or PC software Power: 12V 1A DC power supply with locking (included)
Mechanical	Dimensions (W x H x D): 8.7” × 1” × 5.1” (220mm × 25mm × 130mm) Weight: 1.63 lbs (0.74 kg) Mounting: Mounting ears included Operating Temperature: 32 to 104°F (0 to 40 °C)
