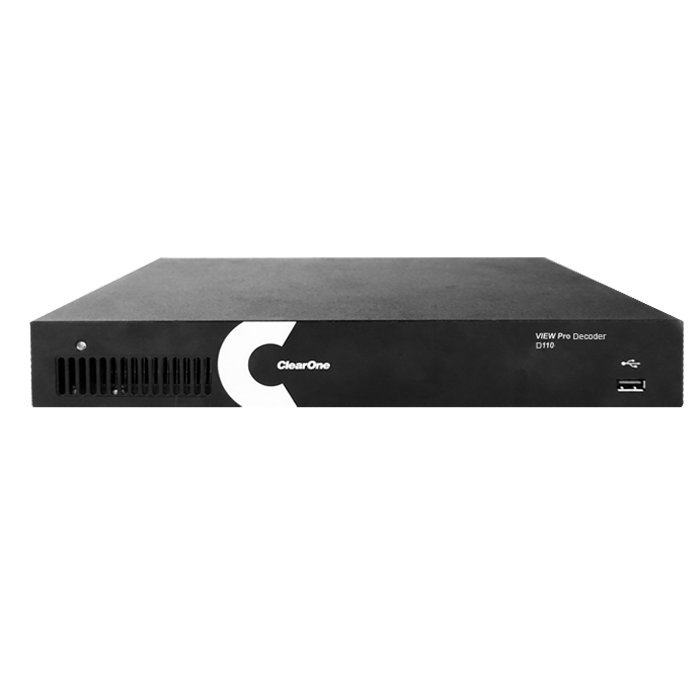

VIEW® Pro Decoder D110

VIEW® Pro Decoder D110

The D110 supports all AV distribution via existing IP networks and infrastructure to all endpoints—from video wall screens to single, large-display screens. A feature-rich audio and control port set rounds out a superior AV experience.

Description
  • High profile H.264 codec with lossless compression, with 1080p60 resolution, 4:4:4 color space, HDCP for content protection
  • Low bandwidth consumption and unlimited scalability
  • Standards based streams that interoperates with 3rd party systems
  • Software based system for video wall and video composition features that replace hardware video processors
  • Provides frame-synchronized video output, highly desirable for video wall projects
Specification
Video

Digital Video Connection: X1 HDMI 1.4a output
Supported Resolutions: 1080p60 1920×1080, HD720 1280×720, UXGA 1600×1200, WSXGA+ 1680×1050, SXGA+ 1440×1080 & 1440×1050, WXGA 1440×900, SXGA 1280×1024, XGA 1024×768, SVGA 800×600, VGA 640×480
Compression Standard: H.264/MPEG4 Part 10 (AVC) Baseline, Main, High profiles up to 4.2
Color Space Support: 24-bit, RGB 4:4:4, YCbCr 4:2:0
HDCP 2.1 Support / Scaling Support
Audio

2 CH Balanced Analog Audio Output: Maximum Input Amplitude: 20dBu THD+N = .006% (20dBu input) Dynamic Range: 106dB Frequency Response: +/- 0.5dB (20->20KHz) Crosstalk: -80dB Removable Phoenix 3.55mm (6 pos × 1)
2 CH Unbalanced Analog Audio Input: THD+N = -84dB Dynamic Range = 90dBA SNR = 95dBA Crosstalk = -80dB, 3.5mm phone jack (T/S/R 3 pos.) Future 3.5mm phone jack (T/S/R 3 pos.) (Currently not used)
2 CH Unbalanced Analog Audio Output: THD+N = -84dB, Dynamic Range = 95dBA SNR = 95dBA Crosstalk = -80dB, 3.5mm phone jack (T/S/R 3 pos.)
Digital Audio I/O: X1 output via HDMI port & 3.5mm mini TOSLINK (Requires 3.5mm to TOSLINK adapter)
USB Audio: X1 Output (future)
Networking, Channels and Protocols

10/100/1000 RJ45: X2 Gigabit ports
Video Streams (Channels): 1 1080p@60Hz or 1920×1200@57Hz
Audio Streams (Channels): Stereo or multi-ch pass through configured as 3 outputs of 2 Stereo analog, or 1 Stereo or multi- ch digital
StreamNet Discovery & Control: Requires StreamNet 3.1x or higher
Control

Serial RS232 Port: DB9
IR Output: 3.5mm phone jack (T/R 3 pos.) (Compatible with StreamNet and other IR Emitters)
IR Input: 3.5mm phone jack (T/S/R 3 pos.) (Compatible with StreamNet IR Sensor only)
USB 3.0, 2.0: Future support
GPIO Inputs: X3, removable Phoenix 3.55mm (6 pos × 1) Contact Closure sensor input
GPIO Outputs: X3, removable Phoenix 3.55mm (6 pos × 1) Latching Relay Contact Closure output 20V@1A Max
General

Power: 19VDC/@2A Normal Operation/@6A Max
Rear Panel Power Button: Short press safe power cycle/long press forced shut down
Power LED Color Status: Normal – Blue Boot – Green Error- Red Upgrade- Amber
Mechanical

Dimensions (W x H x D): 12.2” × 7.4” × 1.75” (310mm × 188mm × 44.4mm)
Weight (Unit): 5.3Lbs (2.4Kg)
Mounting: Wall, Rack, VESA 100×100 mm bracket
Operating Temperature: 32 to 104 °F (0 to 40 °C)
Items Included: Power supply, Wall mount
Software Licenses

PANORAMA™ Video-composition & Video-wall license
StreamNet Audio license
Audio Mixing License
3rd-party RTSP/UDP License
Local Playback License
Future Upgrade Options

USB HID Features (future license)
VIEW Pro Accessories

VIEW Pro Rack mount
VIEW Pro Wall mount
VIEW Pro IR Receiver
VIEW Pro IR Receiver & Emitter
VIEW Pro VESA bracket
