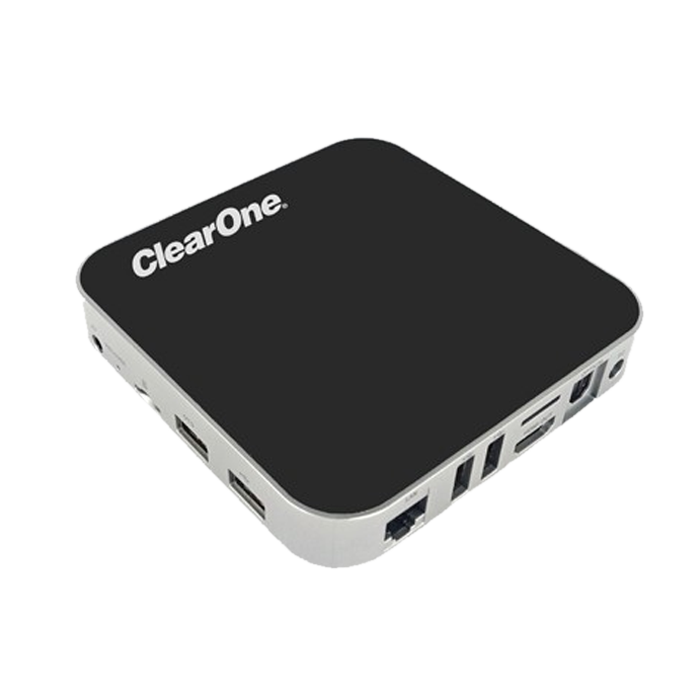

VIEW® Pro Decoder D210

A VIDEODSP™ product of unmatched scalability and value, the VIEW® Pro D210 Decoder makes uncompromised delivery and quality of digital media more secure, easy, and accessible than ever before.

Description
  • High profile H.264 codec with lossless compression, with 1080p60 resolution, 4:4:4 color space, HDCP for content protection
  • Low bandwidth consumption and unlimited scalability
  • Standards based streams that interoperates with 3rd party systems
  • Software based system for video wall and video composition features that replace hardware video processors
Specification
Video

Digital Video Connection (Primary): HDMI 1.4b output
Digital Video Connection (Secondary): Mini Display Port 1.2 output
Supported Resolutions: 1080p60 1920×1080, HD720 1280×720, UXGA 1600×1200, WSXGA+ 1680×1050, SXGA+ 1440×1080 & 1440×1050, WXGA 1440×900, SXGA 1280×1024, XGA 1024×768, SVGA 800×600, VGA 640×480
Compression Standard: H.264/MPEG4 Part 10 (AVC) Baseline, Main, High profiles up to 4.2
Color Space Support: 24-bit RGB 4:4:4 YCbCr 4:2:0

Audio

HDMI
S/PDIF
Mini Display Port
USB (future)

Networking

10/100/1000 Mbps RJ45 (Gigabit)

General

Power: External Power Supply AC 100-240V input, DC 19V output, 3.42 A
Power: External Power Supply AC 100-240V input, DC 19V output, 3.42 A
SD Card Slot (future)

Mechanical

Dimensions (W x H x D): 1.26” × 4.37” × 4.53” (32mm × 111mm × 115mm)
Mounting: VESA mounting bracket (supports 75mm × 75mm and 100mm × 100mm)
Operating Temperature: 32 to 104 °F (0 to 40 °C)
Items Included: Power supply, VESA mounting bracket, USB to DB9 serial adapter

Software Licenses

StreamNet Audio license
Audio Mixing License
PANORAMA TM Video-Composition, Video-Wall license
3rd Party RTSP/UDP License
Local Playback License
