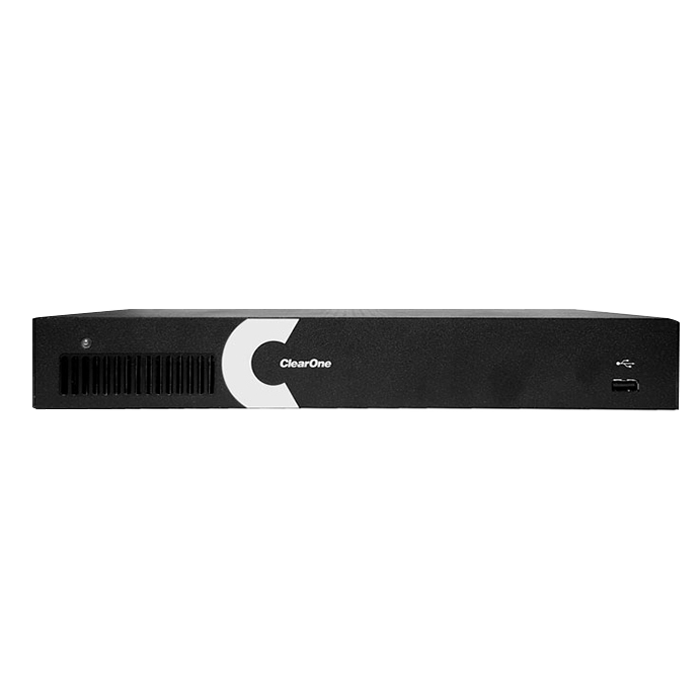

VIEW® Pro Encoder E110

VIEW® Pro Encoder E110

A single channel VIDEODSP™ product unmatched in scalability, quality, and overall value, the VIEW® Pro E110 Encoder promises AV streaming and delivery that is uncompromised in clarity, ease of use and deployment, and efficiency.

Description
  • High profile H.264 codec with lossless compression, with 1080p60 resolution, 4:4:4 color space, HDCP for content protection
  • Low bandwidth consumption and unlimited scalability
  • Standards based streams that interoperates with 3rd party systems
  • Software based system for video wall and video composition features that replace hardware video processors
Specification
Video

Digital Video Connection: X1 HDMI 1.4a input
SUPPORTED RESOLUTION:
– 1080p60 1920×1080
– WUXGA 1920×1200 (scaled resolution)
– HD720 1280×720
– UXGA 1600×1200
– WSXGA+ 1680×1050
– SXGA+ 1440×1080 & 1440×1050
– WXGA 1440×900
– SXGA 1280×1024
– XGA 1024×768
– SVGA 800×600
– VGA 640×480
– X1 via HDMI input port
COMPRESSION STANDARD:
– H.264/MPEG4 Part 10 (AVC)
– Baseline, Main, High profiles up to 4.2
COLOR SPACE SUPPORT:
– 24-bit
– RGB 4:4:4
– YCbCr 4:2:0
HDCP 2.1 Support
Scaling Support
Audio

2 CH AUDIO ENCODING:
– LPCM (Uncompressed) MPEG4 AAC-LC
– Sample Rate: (KHz); 11, 22, 24, 32, 44.1, 48, 96, 128,192
– Bit Rates: (Kbps); 32, 96, 128,192, 320
2 CH BALANCED ANALOG AUDIO INPUT:
– THD+N = .006% @20dBu
– Dynamic Range: 106dB
– Frequency Response: +/- 0.5dB (20->20KHz)
– Crosstalk: -80dB
– Removable Phoenix 3.55mm (3 pos × 2)
2 CH UNBALANCED ANALOG AUDIO INPUT:
– THD+N = -84dB, Dynamic Range = 90dBA
– SNR = 95dBA
– Crosstalk = -80dB, 3.5mm phone jack (T/S/R 3 pos.)
Digital Audio I/O : X1 input via HDMI ports
USB Audio: X1 input (future)
Mechanical

Dimensions (W x H x D): 12.2” × 7.4” × 1.75” (310mm × 188mm × 44.4mm)
MOUNTING:
– Wall Mount
– Rack Mount
– VESA Mount 100×100 Bracket
– Wall Mount
Operating Temperature: 32 to 104 °F (0 to 40 °C)
Items Included: Power supply, Rack mount ears
Networking, Channels & Protocols

10/100/1000 RJ45: X2 Gigabit ports
VIDEO STREAMS (Channels): Up to 2 1080p@60Hz or 1920×1200@57Hz
AUDIO STREAMS (Channels):
– Stereo or multi-ch pass through
– 4 Streams (2 Analog (Stereo) and 2 Digital (Stereo or multi-ch)
StreamNet Discovery & Control:
– Requires StreamNet 3.1x or higher
Control

Serial RS232 Port: DB9
IR OUTPUT:
– 3.5mm phone jack (T/R 3 pos.)
– (Compatible with StreamNet and other IR Emitters)
IR INPUT:
– 3.5mm phone jack (T/S/R 3 pos.)
– (Compatible with StreamNet IR Sensor only)
USB 3.0, 2.0: Future support
GPIO INPUTS:
– X3, removable Phoenix 3.55mm (6 pos × 1)
– Contact Closure sensor input
GPIO OUTPUTS:
– X3, removable Phoenix 3.55mm (6 pos × 1)
– Latching Relay Contact Closure output 20V@1A Max
General

POWER: 19VDC / @2A Normal Operation / @6A Max
REAR PANEL POWER BUTTON: Short press safe power cycle / long press forced shut down
Software Licenses

PANORAMA™ Video composition license
StreamNet Audio license
Audio Mixing License
Multicast RTSP/UDP License
VIEW Pro Accessories

VIEW Pro Rack mount
VIEW Pro Wall mount
VIEW Pro IR Receiver
VIEW Pro IR Receiver & Emitter
VIEW Pro VESA bracket
