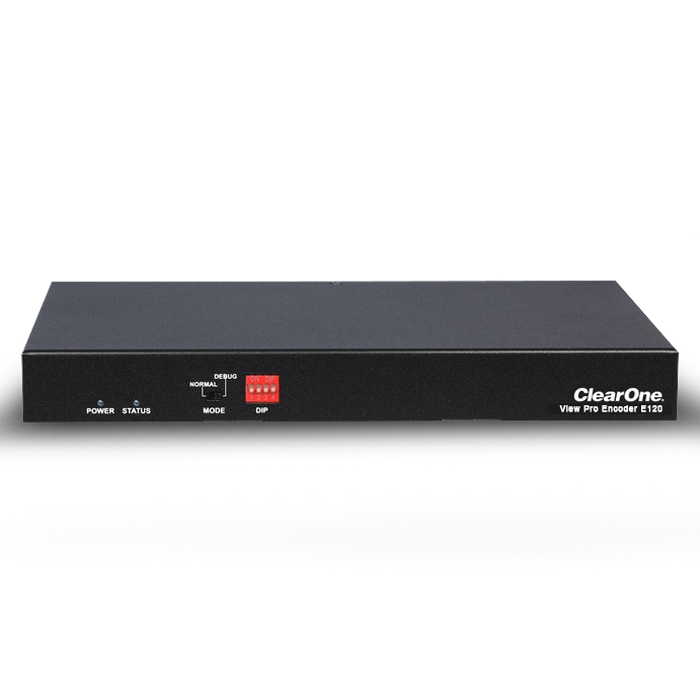

VIEW® Pro Encoder E120

VIEW® Pro Encoder E120

A dual channel VIDEODSP™ product unmatched in scalability, quality, and overall value, the VIEW® Pro E120 Encoder promises AV streaming and delivery that is uncompromised in clarity, ease of use and deployment, and efficiency.

Description
  • High profile H.264 codec with lossless compression, with 1080p60 resolution, 4:4:4 color space, HDCP for content protection
  • Low bandwidth consumption and unlimited scalability
  • Standards based streams that interoperates with 3rd party systems
  • Software based system for video wall and video composition features that replace hardware video processors
Specification
Video

Digital Video Connection: X2 HDMI 1.4a input
Supported Resolutions:
-1080p60 1920×1080
-WUXGA 1920×1200 (scaled resolution)
-HD720 1280×720
-UXGA 1600×1200
-WSXGA+ 1680×1050
-SXGA+ 1440×1080 & 1440×1050
-WXGA 1440×900
-SXGA 1280×1024
-XGA 1024×768
-SVGA 800×600
-VGA 640×480
-X2 via HDMI input port
Compression Standard: H.264/MPEG4 Part 10 (AVC) Baseline, Main, High profiles up to 4.2
Color Space Support: 24-bit RGB 4:4:4 YCbCr 4:2:0
HDCP 2.1 Support: X2
Scaling Support
Audio

2 CH Audio Encoding LPCM (Uncompressed) MPEG4 AAC-LC Sample Rate: (KHz); 11, 22, 24, 32, 44.1, 48, 96, 128,192 Bit Rates: (Kbps); 32, 96, 128,192, 320
2 CH Balanced Analog Audio Input:
-THD+N = .006% @20dBu
-Dynamic Range: 106dB
-Frequency Response: +/- 0.5dB (20->20KHz)
-Crosstalk: -80dB
-Removable Phoenix 3.55mm (3 pos × 2)
2 CH Unbalanced Analog Audio Input
-THD+N = -84dB, Dynamic Range = 90dBA
-SNR = 95dBA
-Crosstalk = -80dB, 3.5mm phone jack (T/S/R 3 pos.)
Digital Audio I/O: X2 input via HDMI ports
USB Audio: X1 input
Mechanical

Dimensions (W x H x D): 12.2” × 7.4” × 1.75” (310mm × 188mm × 44.4mm)
Weight (Unit): 5.3Lbs (2.4Kg)
Mounting: Wall Mount Rack Mount VESA mount 100×100 mm bracket
Operating Temperature: 32 to 104 °F (0 to 40 °C)
Items Included: Power supply Rack mount ears
Software Licenses

PANORAMA™ Video composition license
StreamNet Audio license
Audio Mixing License
RTSP/UDP streaming
Multicast RTSP/UDP License
VIEW Pro Accessories

VIEW Pro Rack mount
VIEW Pro Wall mount
VIEW Pro IR Receiver
VIEW Pro IR Receiver & Emitter
VIEW Pro VESA bracket
Networking, Channels and Protocols

10/100/1000 RJ45: X2 Gigabit ports
Video Streams (Channels): Up to 2 1080p@60Hz or 1920×1200@57Hz
Audio Streams (Channels): Stereo or multi-ch pass through 4 Streams (2 Analog (Stereo) and 2 Digital (Stereo or multi-ch)
StreamNet Discovery & Control: Requires StreamNet 3.1x or higher
Control

Serial RS232 Port: DB9
IR Output: 3.5mm phone jack (T/R 3 pos.) (Compatible with StreamNet and other IR Emitters)
IR Input: 3.5mm phone jack (T/S/R 3 pos.) (Compatible with StreamNet IR Sensor only)
USB 3.0, 2.0: Future support
GPIO Inputs: X3, removable Phoenix 3.55mm (6 pos × 1) Contact Closure sensor input
GPIO Outputs: X3, removable Phoenix 3.55mm (6 pos × 1) Latching Relay Contact Closure output 20V@1A Max
General

Power: 19VDC / @2A Normal Operation / @6A Max
Rear Panel Power Button: Short press safe power cycle / long press forced shut down
Power LED Color Status:
State, LED Color
Normal, Blue
Boot, Green
Error, Red
Upgrade, Amber
