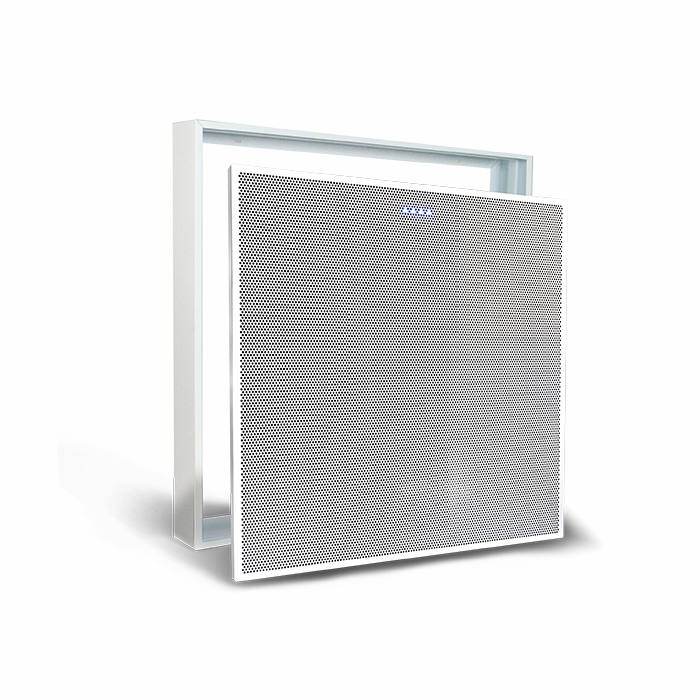

Xceed™ BMA

Xceed™ BMA

Features a USB audio-enabled Beamforming Ceiling Microphone Array that brings cost-effective and superb conferencing audio to your professional home office.

Description
  • BMA CTX with built-in AEC and adaptive steering (think of it as smart switching) provides the same impeccable room coverage as the BMA CT.
  • Compatible with popular applications such as COLLABORATE® Space, Microsoft® Teams, WebEx™, Zoom™, Google® Meet™, and more.
  • 24-in or 600 mm microphone array with a variety of mounting options.
  • FREE COLLABORATE® Space lifetime subscription — ClearOne’s high quality, award-winning cloud-based video collaboration application.
  • Includes 2×10 Watt power amps to drive passive wall speakers.
  • Complete your system with any UNITE® conferencing camera.
  • Connect laptop or room PC to the BMA CTX directly through the USB port on the Versa USB. The included 50-foot CAT6 cable connects the Versa USB to the BMA CTX.
  • Add a Versa Hub for single-cable connection for cloud-based collaboration.
  • Add ClearOne’s Bluetooth Wall Panel to enable mobile devices to join the conference wirelessly. The Bluetooth Wall Panel makes this system smart speaker ready. Supports Alexa, Cortana, Google Home, and Siri.
  • Delivering superb coverage and quality at an unbeatable price, the Xceed BMA is easy to install and easy to use.
Specification
INCLUDES

24in (North America):
– AUR-3200-208-U BMA CTX 24-in
– 910-3200-210 BMA Surface-Mount Kit 24in
600mm (International):
– AUR-3200-208-I BMA CTX 600mm
– 910-3200-210-I BMA Surface-Mount Kit 600mm
All include:
– 910-3200-305 Versa USB
– 910-3200-202 PoE+ Power Supply Kit
– 910-3200-204-50 RJ45 CAT6 Cable – 50’
– Free COLLABORATE® Space lifetime subscription
BMA CTX

Number of Beams: Two patterns, either 5 or 6 beams
Polar Pattern: Custom
Frequency Response: 150 Hz – 16 kHz, +/- 3 dB
Dynamic Range: 150 Hz – 16 kHz, > 70 dB
AMPLIFIER OUTPUT
– Type: 5.08mm black header, Phoenix/Euroblock type
– Audio: 2 channels
– Output power: 2×10 W Max, 8Ω load*
– Frequency Response: 20 Hz – 22 kHz @ +10 dBu, +/- 0.5 dB

POWER SELECTION SWITCH
– Type: Slide Switch
– Toggle towards P-Link to power device by P-Link
– Toggle towards PoE to power device by PoE Injector

MOUNTING
– Ceiling mount (24” or 600 mm)

MECHANICAL
– 24” BMA CTX: 23.72 x 23.72 x 2.13” (602.5 x 602.5 x 54.1mm)
– 600 mm BMA CTX: 23.33 x 23.33 x 2.13” (592.5 x 592.5 x 54.1mm)
– Weight: 7.7 lb (3.5 kg)
POWER

Power Type: PoE/PoE+
Port Type: RJ-45
PoE In/P-Link In: 802.3af or 802.3at PoE/PoE+
Power Source: PoE Injector or equivalent
PoE: IEEE 802.3at compliant devices providing 56V and 640 mA (36 W).
P-Link In – Mode B
Power Consumption:
– 100-240 VAC, 50/60 Hz, 3 Watts Typical
– 38 W at max power 1kHz (2 x 10 W)
ENVIRONMENTAL

Thermal: 130 BTU/Hr at max power
Operating Temperature: 14° F – 104° F (-10° C – 40° C) ambient temperature
VERSA USB

Port Type: USB-B connector
Audio: Digital audio, 2 x 2 bidirectional channels
Sample Rate: 48 kHz
Sample Bit Depth: 24 Bit
Compatibility: USB 2.0, USB 3.0
USB Cable Distance: 16’ (5 m)
Compatible: Windows & MAC OS devices

P-LINK PERIPHERAL BUS
– Ports Type: RJ-45 (Cat5e or Cat6)
– P-Link In & Out: Proprietary peripheral bus
– PoE 802.3af Mode B, Midspan
– Power on “spare pairs” 4,5 and 7,8
– Cable: Solid-core 24 AWG, factory-terminated Cat5e or Cat 6 cable
– Distance: Up to 200’ (60 m)

POWER SELECTION SWITCH
– Type: Slide Switch
– Toggle towards P-Link to power device by P-Link
– Toggle towards PoE to power device by PoE Injector

PoE In PORT
– Port Type: RJ-45 port
– PoE: 802.3af or 802.3at PoE/PoE+ injector input

MOUNTING
– Rack-shelf mount
– Under-the-table mount
– Wall mount behind display

MECHANICAL
– Without rack ears: 5.5 x 1.6 x 4.1” (144 x 42 x 103mm)
– With rack ears: 6.8 x 1.7 x 4.1” (172 x 43 x 103mm)
– Weight: 0.88 lb (0.4 kg)
OPTIONAL CLEARONE PERIPHERALS

AUR-3200-303 Bluetooth Wall Panel
910-3200-305 Versa USB
AUR-151-010-B Passive Wall Speakers
AUR-3200-204-50 RJ45 CAT6 Cable – 50’
910-3200-702-30 USB 3.0 Cable – 33’
693-153-050 Speaker Cable – 50’
