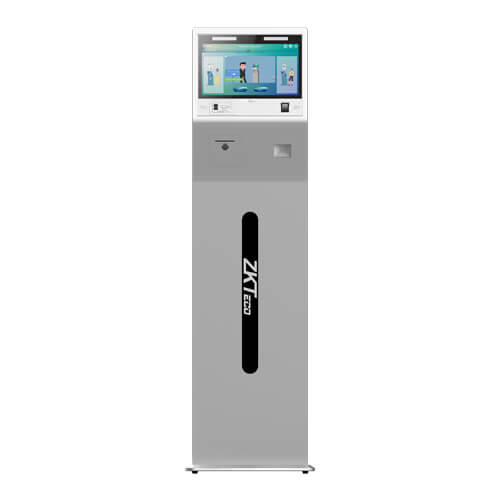

FaceKiosk-H13C & H13C[TD]

FaceKiosk-H13C, our 13.3-inch touch screen multipurpose facial recognition Android Smart Kiosk, is designed to provide friendly and interactive user experience by incorporating fingerprint, label printing, QR code, and RFID module in it.

Description

FaceKiosk-H13C, our 13.3-inch touch screen multipurpose facial recognition Android Smart Kiosk, is designed to provide friendly and interactive user experience by incorporating fingerprint, label printing, QR code, and RFID module in it.

FaceKiosk-H13C offers multiple verification module to verify users’ identity through facial recognition, fingerprint, smart card or hybrid verifications.

Specification
User Capacity

500

Visitor Capacity

9,500

Facial Templates Capacity

10,000

Transaction Capacity

100,000

Communication

TCP/IP, Wi-Fi, Bluetooth, 3G/4G

Screen

13.3-inch capacitive touch screen, 1920*1080 pixels

CPU

ZKTeco Customized Computer Vision eight-core processor

3G / 4G

LTE FDD: B1/B2/B3/B4/B5/B7/B8/
B20/B28 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B8
GSM: 850/900/1800/1900MHz

Bluetooth

BT2.1+EDR/3.0/4.1 LE/4.2 BLE

WLAN

2.4GHz, 802.11 b/g/n

Camera Pixel

2-megapixel

ROM

16GB eMMC

RAM

2GB LPDDR3

Communication Port

1*RJ45, TF card slot, RS232/485

Operating System

Android 9.0

Facial Recognition Algorithm

ZKFace 5.6
FAR ≤1%; FRR≤1%

Facial Recognition Speed

<1s

Facial Recognition Distance

0.5m to 2m

Card Type

ID card, IC Card(optional)

QR Code Module

Dynamic Check-in or Check-out QR codes on the ZKBioSecurity QR code, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects

Label Printer

Line Thermal Printer Printing speed: 100mm/s (max.)
Paper width: 80±0.5mm

Operating Humidity

20% to 90%RH

Storage Temperature

-40 to 60°C (-40 to 140°F)

Storage Humidity

20% to 90%RH

Dimensions (L*W*H)

1420*354*50mm (55.91*13.94*1.97In)

Net Weight

43kg

Weight with Packing

48kg

Preventative Measures

Mask detection / Body temperature detection

Temperature Measurement Distance

30 to 50cm (1to1.64ft)

Temperature Measurement Accuracy

±0.3°C (±0.56°F)

Temperature Measurement Range

34 to 45°C (93.2 to 113°F)
