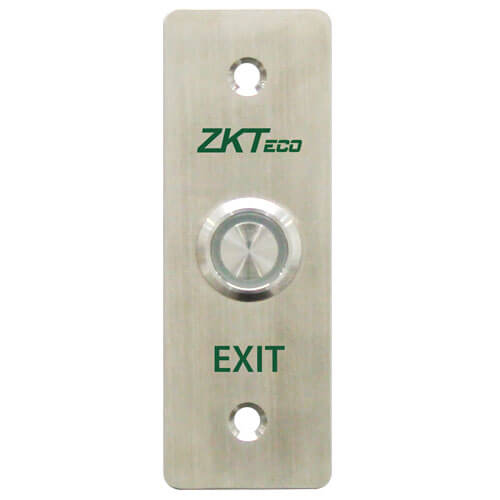

EB101
EB101 is a new mechanical exit button. It is made of stainless steel. It has small size, exquisite appearance, economical application and high cost performance. It is widely used in access control, electronic access control systems and other fields.
Description
EB101 is a new mechanical exit button. It is made of stainless steel. It has small size, exquisite appearance, economical application and high cost performance. It is widely used in access control, electronic access control systems and other fields.
Specification
| Switching Voltage | DC 12 ~ 24V |
|---|---|
| Rated Current | 5A |
| Operating Temperature | -20°C ~ +50°C |
| Storage Temperature | -20°C ~ +65°C |
| Operating Humidity | 10% – 90% |
| Lamp Type | LED |
| Lamp Life | 40000h (reference value) |
| Lamp Color | Blue |
| Buck Mode | Built-in step-down converters |
| Operation Method | Self-replication |
| Explosion-proof | IK10 |
| Shell Material | 1.7mm stainless steel plate |
| Pin Material | Copper plated |
| Head Shape | Plane, power supply standard |
| Dimension | 115mm * 40mm * 28.6mm (L*W*H) |
