ZK-TD200

The novel coronavirus has given rise to grave concerns about public health and personal hygiene because of its wide geographical spread. The number of cases has been increasing rapidly, and it is necessary to take preventive measures to eliminate the spreading of the virus.

Description

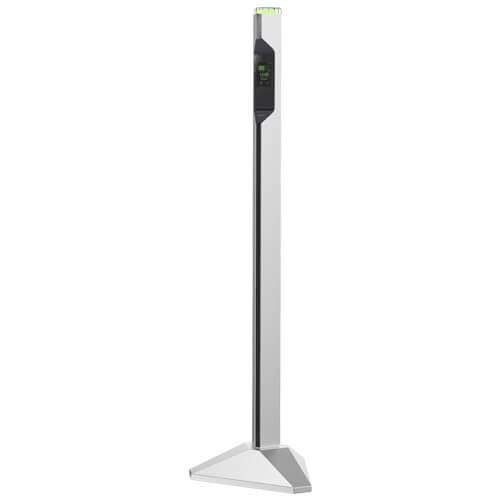

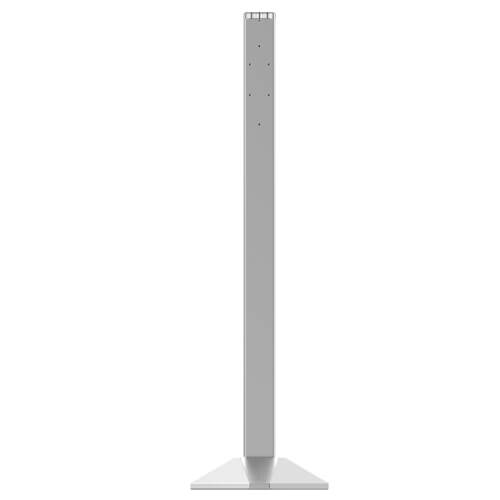

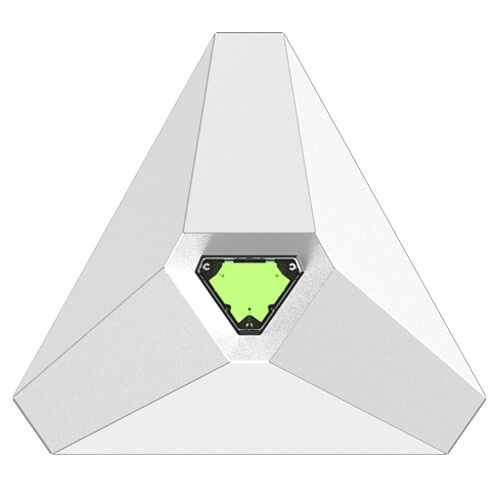

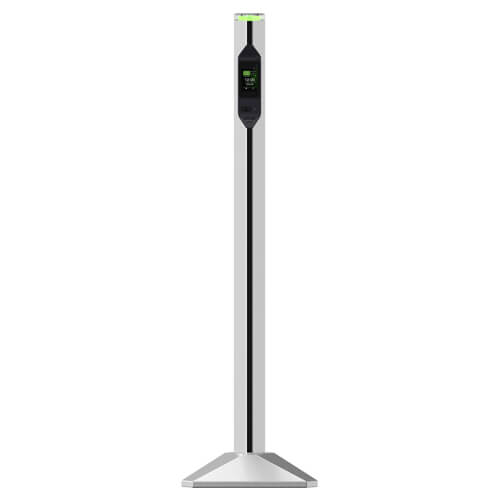

The novel coronavirus has given rise to grave concerns about public health and personal hygiene because of its wide geographical spread. The number of cases has been increasing rapidly, and it is necessary to take preventive measures to eliminate the spreading of the virus. The disease can occasionally cause symptoms like a high fever. The ZK-TD200 is an infrared thermometer used to measure the body temperature without physical contact. It also incorporates pass count and an alarm. It can measure the body temperature at the wrist of the passengers. If the detected temperature is above 37.3°C or any value set by the Admin, ZK-TD200 will raise the alarm to notify the guards. Since the device is easy to move, it delivers excellent flexibility to assist different solutions.

Specification
Power Supply

AC 100 ~ 120V / 200 ~ 240V

Electrical Current

65mA

Standby Power

3.5W

Screen Size

3.5 inch

Screen Resolution

320 * 480

Working Environment

Indoor

Dimension

428 * 379 * 1484 (mm) (L*W*H)

Packing Dimension

1445 * 505 * 290 (mm)

Weight with Packing (kg)

11.5

Temperature Sensor Type

IR temperature sensor

Temperature Measurement Time

≤1s

Temperature Measurement Point

Wrist

Temperature Measurement Distance

50mm ~ 100mm

Height of Temperature Sensor from the Ground

1186mm (Customizable)

Temperature Measurement Deviation

±0.5°C (±0.9°F)

Temperature Range

30°C ~ 45°C (86°F ~ 113°F)

Interval Between Temperature Measurement

2s
